APL Circular Glass Lift
A round, fully glazed lift that becomes the centrepiece of any home, office or public space, with curved full-glass doors and three diameters to choose from.
What you’re getting
Every APL Circular Glass Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
Capacity300kg per m²Rated load per square metre of platform
Speed0.15m/sSmooth, comfortable ride
SizeMinimal pit150mm pit, 2,350mm minimum headroom
Cabin sizesØ1,300, 1,450 or 1,600mmThree round diameters
Entry optionsCurved full-glass doorSingle or through entrance
OperationHold-to-run or automaticChoose the operating mode to suit the building
StructurePowder-coated frameFully glazed, with curved glass doors
LocationStairwell or freestandingCentred in a round stairwell or on its ownThe elegance of round shapes

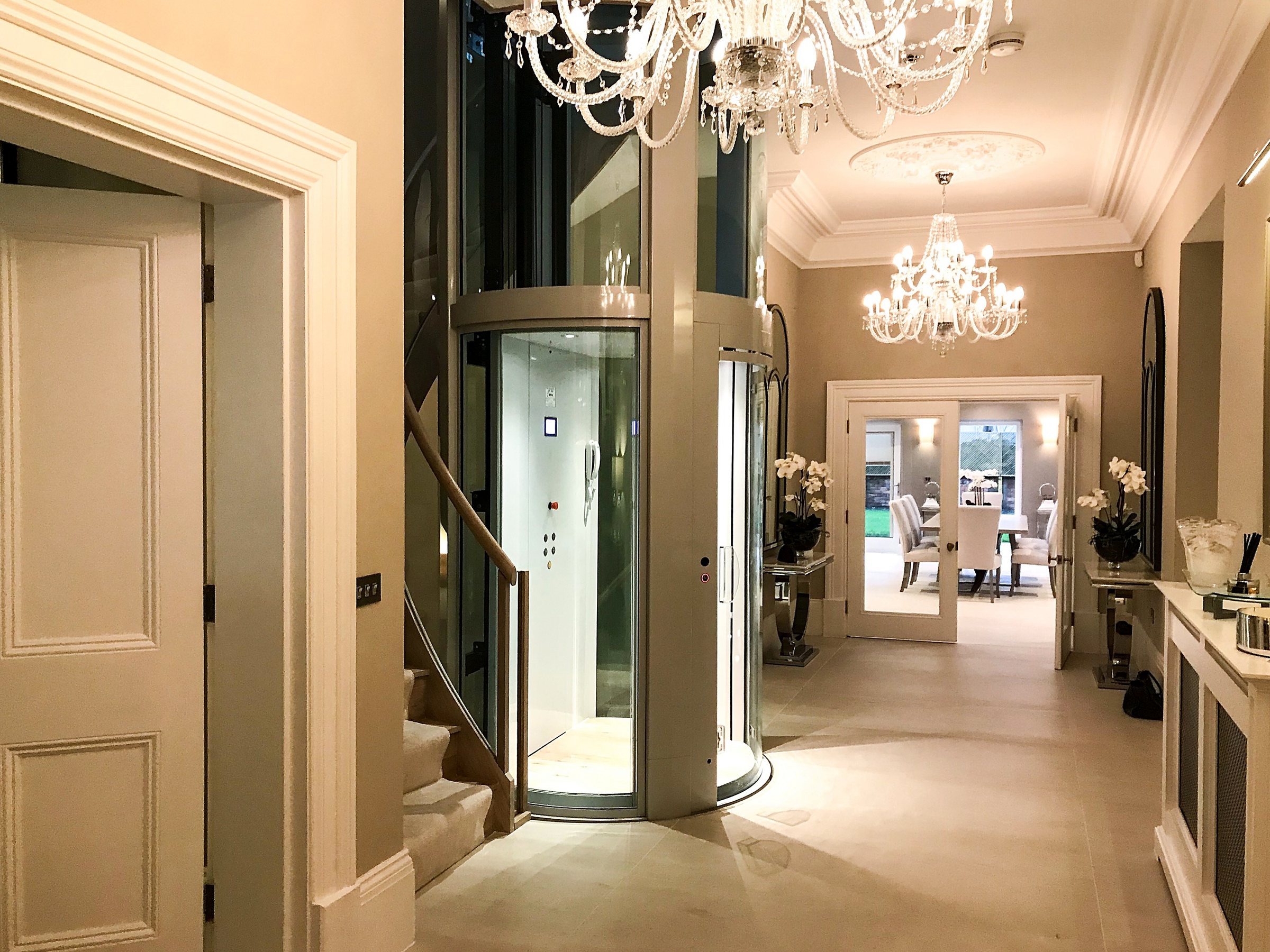

The APL Circular Glass Lift is designed to be seen. Its curved glass, slim structure and round cabin enhance the architecture around it and turn the lift into a real piece of furniture.
The elegance of round shapes
Fully glazed cabin walls and curved full-glass doors, set in a powder-coated frame.
APL Circular Glass Lift specification
Standard ranges for the APL Circular Glass Lift. Every lift is configured to your building, and our team will confirm the right specification for your project.
| APLCircular Glass Lift | |
|---|---|
| Capacity | 300kg per m² of platform area |
| Speed | 0.15m/s |
| Pit depth | 150mm |
| Headroom | 2,350mm minimum |
| Diameters | Ø1,300mm, Ø1,450mm or Ø1,600mm |
| Door openings | 600 to 850mm wide, 2,000mm high, depending on diameter and layout |
| Doors | Curved full-glass doors |
| Entrances | Single or through |
| Cabin walls | Glass |
| Structure | Powder-coated frame |
| Operation | Hold-to-run in the cabin with automatic landings, or automatic in the cabin and at the landings |
| Installation | Centred in a round stairwell or freestanding |
| Compliance | Machinery Directive 2006/42/EC |
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The APL Circular Glass Lift is built to the Machinery Directive 2006/42/EC, which applies in the UK through the Supply of Machinery (Safety) Regulations 2008.
It is not designed to meet Part M of the Building Regulations or to satisfy duties under the Equality Act 2010, so it is not the right choice where a lift is required for accessibility compliance. For those projects, our APL Elite Cabin Lift or one of our platform lifts may be a better fit.
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your circular glass lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Circular Glass Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Circular Glass Lift, and who is it best for?
The APL Circular Glass Lift is a round, fully glazed lift for homes, offices, museums and other public places where the lift should be a feature. It is rated at 300kg per m² of platform area and comes in three diameters. The right choice depends on the users, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Circular Glass Lift need?
The APL Circular Glass Lift needs a 150mm pit and a minimum headroom of 2,350mm, and comes in diameters of Ø1,300, 1,450 or 1,600mm. It can sit centrally in a round stairwell or stand on its own. A survey should verify measured space, structural support, access for installation and any builder or electrical works before the design is signed off.
What can the APL Circular Glass Lift carry?
The APL Circular Glass Lift is rated at 300kg per m² of platform area, so the load it can carry depends on the diameter you choose. If a greater capacity is required, our APL Elite Cabin Lift carries up to 500kg and our APL Heavy-Duty Cabin Lift up to 1,500kg.
Which sizes are available?
Three round diameters are available: Ø1,300mm, Ø1,450mm and Ø1,600mm, each with a choice of cabin and door layouts. Door openings range from 600 to 850mm wide depending on the size and layout.
What doors and finishes are available?
The APL Circular Glass Lift has fully glazed cabin walls and curved full-glass doors, set in a powder-coated frame.
How is the APL Circular Glass Lift operated?
It can run in two modes: hold-to-run in the cabin with automatic operation at the floors, or automatic operation in the cabin and at the floors. We will recommend the right mode for how the lift will be used.
Where can the APL Circular Glass Lift be installed?
It is ideal in a central position inside a round stairwell, or freestanding, in homes, offices, museums and other public places.
What affects the cost of an APL Circular Glass Lift installation?
The cost of an APL Circular Glass Lift depends on travel, number of stops, diameter, doors, finishes and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Circular Glass Lift?
The APL Elite Cabin Lift is backed by a 2-year manufacturer’s warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
