APL Hydraulic Goods Lift
A heavy-duty solution for safely moving goods between floors, offering a capacity of up to 5,000kg and flexible internal or external installation.
What you're getting
Every APL Hydraulic Goods Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
CapacityUp to 5,000kgFrom 300kg; operator on board up to 4,000kg
Max travelUp to 16,000mmUp to 5 stops; 7m on 300kg and 600kg models
Speed0.10–0.15m/sAutomatic floor operation as standard
Entry optionsSwing door & roller shutterAccess on 1, 2 or 3 sides; EI60 and EI120 fire doors available
SizePit from 120mmHeadroom from 2,150mm, depending on capacity
StructureOptional steel structureFully self-supporting up to 600kg, for industrial mezzanines
Platform sizeBespoke sizes availableUp to 3,000mm deep and 6,100mm wide
LocationInternal & externalRetractable roof and cabin version for outdoor sitesBuilt for the job

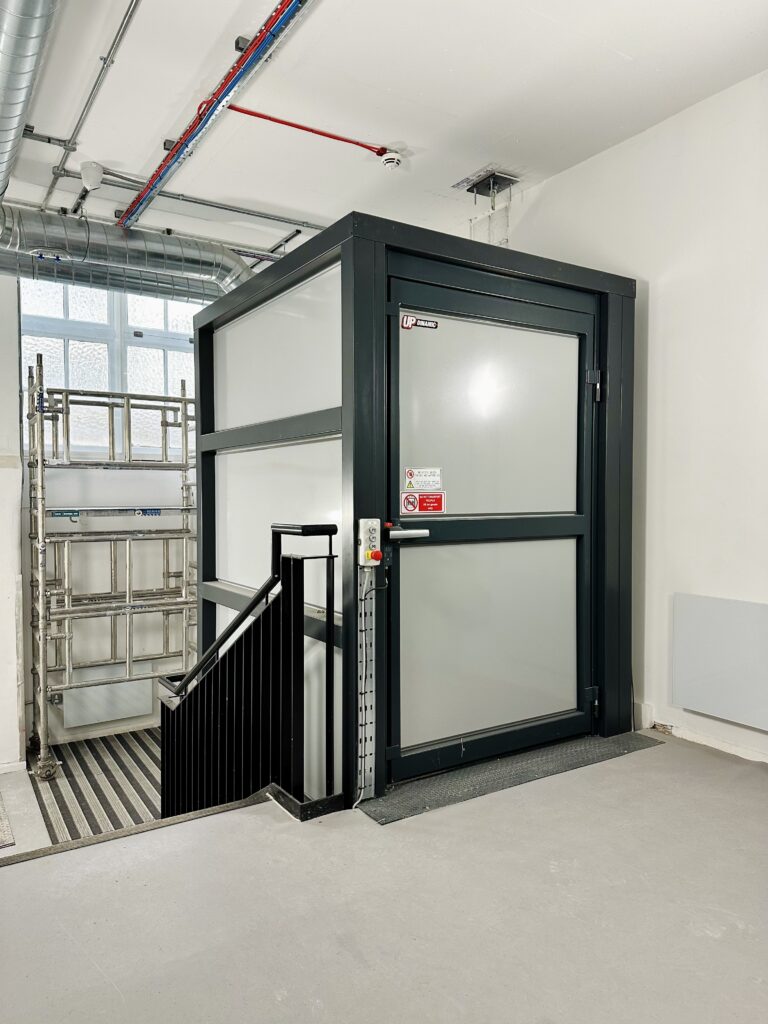

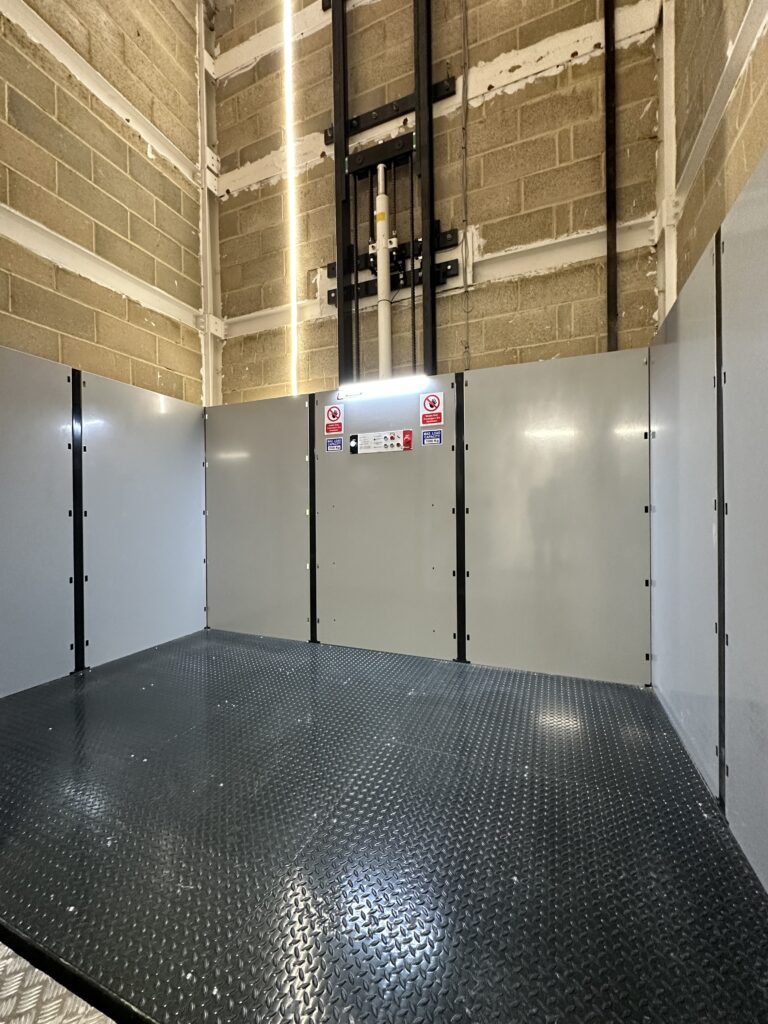

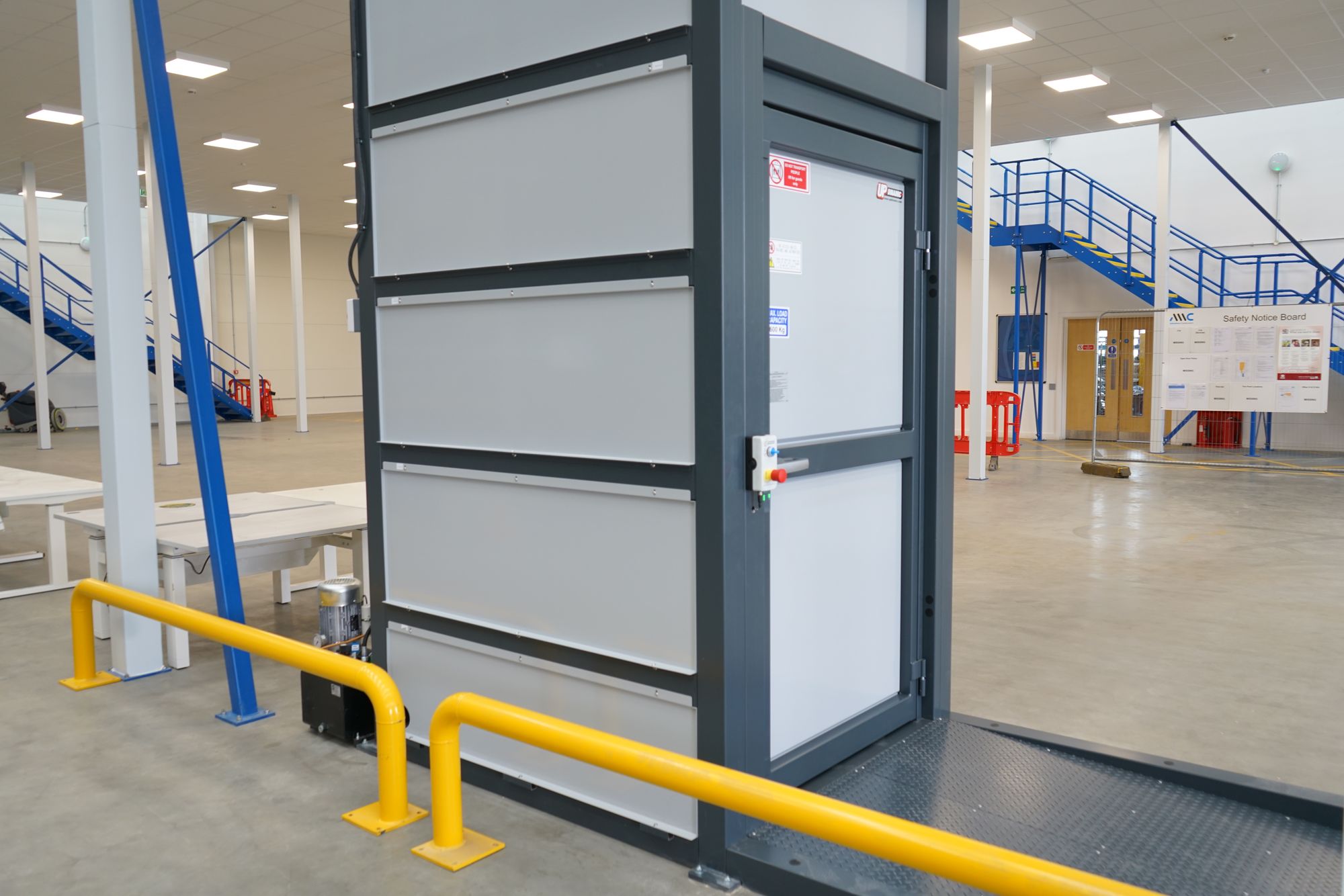

Hydraulic goods lifts at work in warehouses, mezzanines, basements and offices, moving heavy loads between floors with a choice of landing doors and shutters.
APL Hydraulic Goods Lift specification
Standard ranges for the APL Hydraulic Goods Lift. Every lift is configured to your building, and our team will confirm the right specification for your project.
| APLHydraulic Goods Lift | |
|---|---|
| Capacity | 300kg to 5,000kg |
| Drive | Hydraulic, with 1, 2 or 4 cylinders depending on capacity |
| Maximum travel | 16m (7m on 300kg and 600kg models) |
| Stops | Up to 5 |
| Accesses | 1, 2 or 3 sides |
| Speed | 0.10–0.15m/s |
| Platform size | Up to 3,000mm deep and 6,100mm wide, depending on capacity |
| Pit | 120mm to 1,150mm, depending on capacity (975–1,400mm for the retractable roof version) |
| Minimum headroom | 2,150–2,400mm, depending on capacity (2,500mm for the retractable roof version) |
| Power supply | Single-phase (300kg and 600kg single-cylinder models) or three-phase |
| Operation | Automatic floor operation; operator on board on all models except the 4-cylinder 5,000kg |
| Operator safety | 1,800mm protection panel, double-ray perimeter photocells, hold-to-run dual controls, chain slack sensor and emergency dialler |
| Landing doors | Manual or automatic; heavy-duty swing doors (EN1090), EI60/EI120 fire doors, or roller shutter and sectional doors up to 6,000 x 5,000mm |
| Finishes | Epoxy powder paint in RAL 7016 or RAL 9006 as standard; hot-dip galvanising, anti-acid zinc or marine primer; stainless steel AISI 304 or 316 |
Hydraulic goods lifts for warehouses, mezzanines and food production
The APL Hydraulic Goods Lift moves goods and one operator between up to five floors, with capacities from 300kg to 5,000kg and up to 16m of travel.
Operator on board
Certified for goods and one operator on board, with a 1,800mm protection panel, double-ray perimeter photocells and hold-to-run dual controls.
Self-supporting structure
The structure can be completely self-supporting up to 600kg and does not need anchoring to landings, making it a suitable solution for industrial mezzanines.
Finishes for any environment
Hot-dip galvanising for systems exposed to bad weather, marine paint for saline atmospheres and stainless steel for the food industries.
Safety built in
The safety coefficient of the chains is above 8, a sensor monitors each chain for slackening, and the lift descends automatically to the lower floor in a power failure.
Remote monitoring
U-cloud puts your goods lift data in one portal, with real-time indicators for predictive maintenance and links to other Industry 4.0 automation.
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The regulations that apply depend on your building, how the lift is used and the specification you choose. Goods lifts used at work must also be thoroughly examined and maintained in line with the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER) and the Provision and Use of Work Equipment Regulations 1998 (PUWER).
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your goods lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Hydraulic Goods Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Hydraulic Goods Lift, and who is it best for?
The APL Hydraulic Goods Lift is certified for goods and one operator on board, with capacities from 300kg to 5,000kg and up to 16m of travel over up to five stops. It suits warehouses, industrial mezzanines, food processing and other goods-handling sites. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Hydraulic Goods Lift need?
The APL Hydraulic Goods Lift can be installed in a shaft with a supporting wall, or supplied with its own metal structure, including a fully self-supporting version for industrial mezzanines. Pit and headroom depend on capacity, from a 120mm pit and 2,150mm headroom on smaller models up to a 1,150mm pit on the four-cylinder 5,000kg version. Platform sizes are bespoke. Exact dimensions, pit, headroom, structural support and openings are project-specific. A survey should verify measured space, fixing points, access for installation and any builder or electrical works before the design is signed off.
What can the APL Hydraulic Goods Lift carry, and what is its load capacity?
Capacities range from 300kg to 5,000kg, with operator-on-board use available up to 4,000kg. For heavier loads over shorter travel (up to 6m), our APL Goods Scissor Lift is available with up to 10,000kg.
What happens to the APL Hydraulic Goods Lift during a power cut or fault?
With the operator-on-board outfitting, the APL Hydraulic Goods Lift automatically descends to the lower floor in the event of a power failure and includes an emergency dialler (landline or GSM). The full procedure will be demonstrated upon handover.
What inspections and workplace regulations apply to the APL Hydraulic Goods Lift?
Goods lifts used at work fall under the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER), which require a thorough examination by a competent person at least every 12 months, and the Provision and Use of Work Equipment Regulations 1998 (PUWER), which cover safe use, maintenance and training. The APL Hydraulic Goods Lift is designed to carry goods, not passengers. We can service the lift and help you keep the right records, and we’ll confirm the requirements for your site during survey.
Can the APL Hydraulic Goods Lift move pallets, trolleys, bins and stock?
Yes, these are core uses for the APL Hydraulic Goods Lift, with capacities up to 5,000kg and platforms up to 6,000mm wide. Alliance will check your heaviest and largest loads and how they're loaded so the lift is correctly specified.
What travel, entry and finish options are available for the APL Hydraulic Goods Lift?
The APL Hydraulic Goods Lift offers up to 16m of travel and five stops, with access on up to three sides. Landing doors can be manual or automatic swing doors, EI60/EI120 fire doors, or roller shutters and sectional doors up to 6,000 × 5,000mm. Finishes include epoxy powder paint, hot-dip galvanising, marine-grade paint and stainless steel, and a version with a retractable roof and cabin suits outdoor installations. Final travel, stops, door arrangement, clear openings, platform size and finishes are recorded in the project specification after survey.
What affects the cost of an APL Hydraulic Goods Lift installation?
The cost of an APL Hydraulic Goods Lift depends on load capacity, travel, number of stops, platform size, the shaft or structure, doors or shutters, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Hydraulic Goods Lift?
The APL Hydraulic Goods Lift is backed by a 1-year manufacturer's warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
