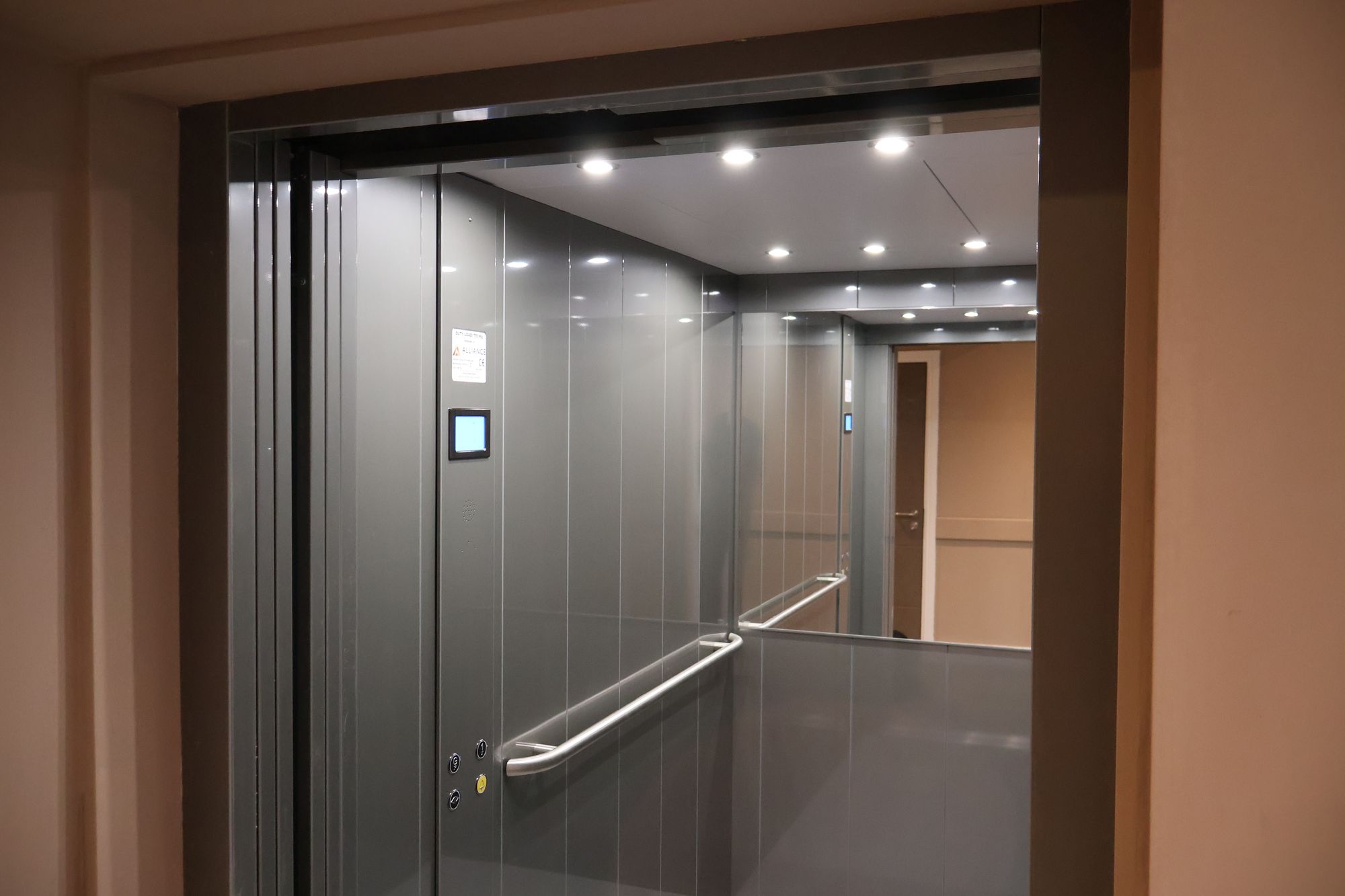

APL Heavy-Duty Cabin Lift
A robust, bespoke solution for safely transporting passengers and goods, with capacities from 750kg to 1,500kg for demanding commercial and industrial environments.
What you're getting
Every APL Heavy-Duty Cabin Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
CapacityUp to 1,500kgApprox. 20 persons
Max travel18,000mm0.15m/s, with a two-speed 400V three-phase drive
Max cabin size1,700mm x 2,500mmInternal dimensions, with 2,100mm height clearance
Entry optionsSliding or swing doorSingle, through or adjacent entrances, on up to 3 sides
SizeLow pit & headroom350mm pit as standard (270mm on some specifications), 2,700mm minimum headroom
FinishBespoke options availableSkinplate, RAL powder coat, galvanised or brushed stainless steel
OperationSingle press operationConstant pressure operation also available
UsagePassengers & goodsLoading with a manually moved pallet truck is allowedBuilt to carry heavy finishes
At Prince of Wales Drive in Battersea we combined the APL Elite and APL Heavy-Duty, increasing the capacity to 750kg so the lift could carry heavy finishes such as framed glass doors. Capacity can be increased up to 1,500kg to suit even heavier finishes.
A finish to suit every space

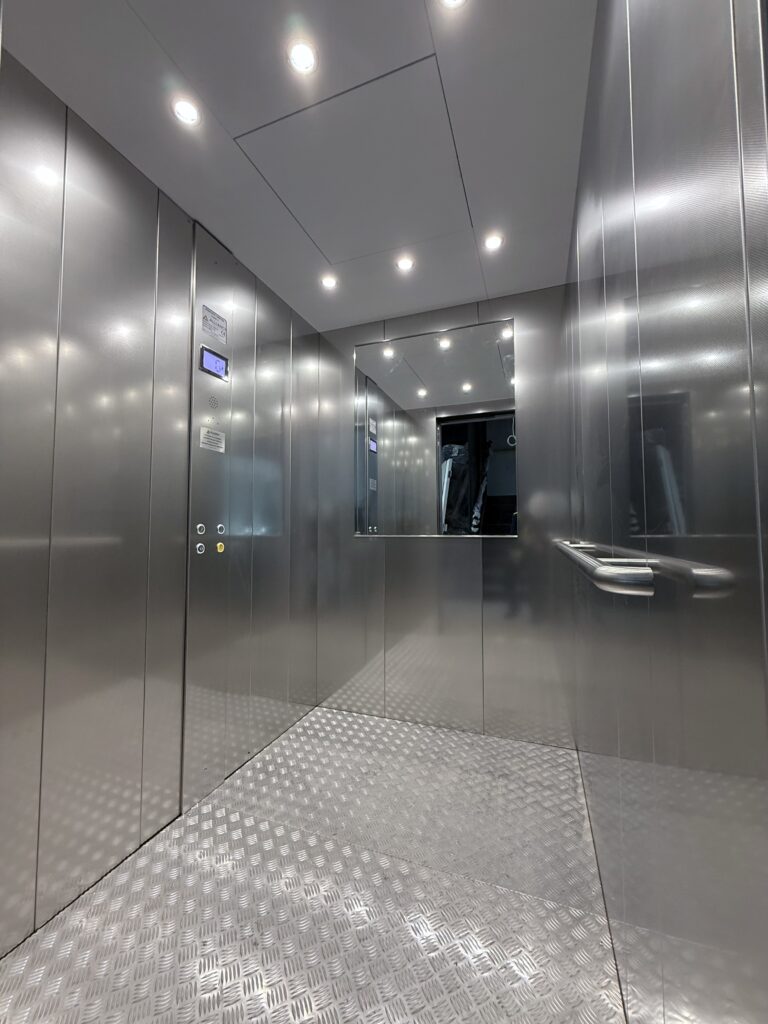

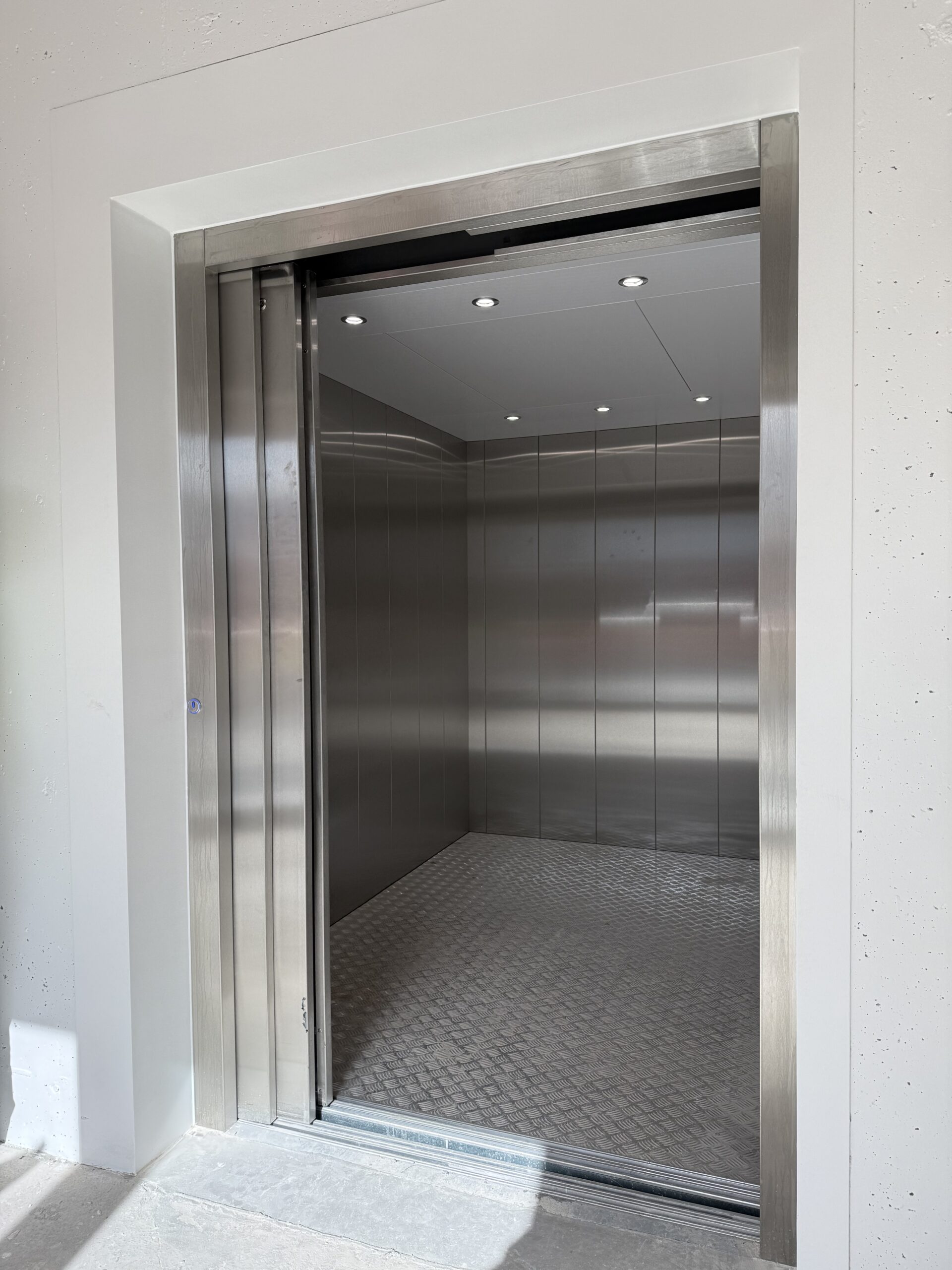

From skinplate and textured RAL powder coat to galvanised or brushed stainless steel, every APL Heavy-Duty is finished to suit the building and the way it is used.
APL Heavy-Duty Cabin Lift specification
Standard ranges for the APL Heavy-Duty. Every lift is configured to your building, and our team will confirm the right specification for your project.
| APLHeavy-Duty Cabin Lift | |
|---|---|
| Capacity | Up to 1,500kg (approx. 20 persons) |
| Duty loads | 750kg (10 persons), 1,000kg (13), 1,200kg (16) or 1,500kg (20) |
| Cabin size | Up to 1,700 x 2,500mm internal, 2,100mm height clearance |
| Maximum travel | 18m |
| Speed | 0.15m/s |
| Drive | Hydraulic, two speeds |
| Pit | 350mm standard (270mm on some specifications) |
| Minimum headroom | 2,700mm |
| Power supply | 400V AC three-phase, 50Hz |
| Entrances | Up to 3 sides: single, through or adjacent |
| Doors | Automatic sliding or swing landing doors, 800 to 1,200mm openings (900mm standard); fire-rated swing doors available |
| Operation | Hold-to-run without cabin door, or fully automatic with automatic sliding doors |
| Installation | Indoors or outdoors |
| Compliance | CE certified, Machinery Directive 2006/42/EC |
Case studies
The APL Heavy-Duty Cabin Lift in action
The client wanted a scenic lift for a contemporary entrance hall, with very limited pit and headroom to work with.
Heavy-duty cabin lifts for people, goods and cycles
The APL Heavy-Duty moves large numbers of people or heavy loads between floors, with a spacious cabin and capacities up to 1,500kg.
Cycles and goods
Durable and reliable, ideal for transporting people and goods, and can comply with TfL (Transport for London) regulations for cycle lifts.
Spacious open cabin
A comfortable open-space cabin for moving large flows of people or heavy goods, with internal dimensions up to 1,700 x 2,500mm.
Made to fit your building
We design and build the lift you need, adapting it to your space and requirements. The APL Heavy-Duty can be installed both indoors and outdoors.
Design
Modern and contemporary finishes, with walls and control panel in skinplate, textured RAL powder coat, galvanised or brushed stainless steel.
Safety and comfort
A reliable and safe lift, even when transporting heavy loads in industrial environments, with a two-speed drive for smooth, constant and comfortable movement.
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The regulations that apply depend on your building, how the lift is used and the specification you choose. The APL Heavy-Duty Cabin Lift is supplied in line with CE certified, Machinery Directive 2006/42/EC. Depending on your project, requirements can also include Part M of the Building Regulations and the Equality Act 2010.
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your cabin lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Heavy-Duty Cabin Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Heavy-Duty Cabin Lift, and who is it best for?
The APL Heavy-Duty Cabin Lift is a hydraulic cabin lift for passengers, or passengers and goods, designed to move large numbers of people or heavy loads. It carries up to 1,500kg (approx. 20 persons) with up to 18m of travel, can be installed indoors or outdoors, and can comply with TfL requirements for cycle lifts. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Heavy-Duty Cabin Lift need?
The APL Heavy-Duty Cabin Lift can be installed in a masonry shaft or supplied with its own structure, indoors or outdoors. It needs a 350mm pit as standard, or 270mm on some specifications, and minimum headroom of 2,700mm, with internal cabin sizes up to 1,700mm × 2,500mm and entrances on up to three sides. Exact dimensions, pit, headroom, structural support and openings are project-specific. A survey should verify measured space, fixing points, access for installation and any builder or electrical works before the design is signed off.
What can the APL Heavy-Duty Cabin Lift carry, and what is its load capacity?
The capacity is up to 1,500kg (approx. 20 persons), and loading with a manually moved pallet truck is allowed. For goods-only loads above this, our APL Hydraulic Goods Lift is available with up to 5,000kg.
What happens to the APL Heavy-Duty Cabin Lift during a power cut or fault?
The APL Heavy-Duty Cabin Lift runs on a 400V three-phase supply and includes automatic emergency battery lowering and alarm/communication. In the event of a power failure the lift will automatically proceed to the lowest floor and open its doors. The full procedure will be demonstrated upon handover.
Can the APL Heavy-Duty Cabin Lift support Part M and Equality Act accessibility requirements?
Yes, the APL Heavy-Duty Cabin Lift can be supplied as Part M compliant provided the correct specification is met and site conditions allow it. The project team should assess the Equality Act 2010, relevant Building Regulations guidance, applicable lift standard, fire strategy, circulation space and user needs.
Can the APL Heavy-Duty Cabin Lift carry passengers and goods in the same lift?
Yes. The APL Heavy-Duty Cabin Lift is designed for passengers, or passengers and goods, with capacity up to 1,500kg.
What travel, entry and finish options are available for the APL Heavy-Duty Cabin Lift?
The APL Heavy-Duty Cabin Lift offers up to 18m of travel with single, through or adjacent entrances, swing or automatic sliding doors with openings from 800mm to 1,200mm, and fire-rated landing doors available. Walls can be skinplate, RAL powder coat, galvanised or brushed/patterned stainless steel. Final travel, stops, door arrangement, clear openings, cabin size and finishes are recorded in the project specification after survey.
What affects the cost of an APL Heavy-Duty Cabin Lift installation?
The cost of an APL Heavy-Duty Cabin Lift depends on travel, number of stops, load capacity, cabin size, whether a shaft or structure is needed, doors, finishes, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Heavy-Duty Cabin Lift?
The APL Heavy-Duty Cabin Lift is backed by a 2-year manufacturer’s warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
