APL Inclined Platform Lift
A bespoke incline platform lift for straight or curved staircases, suitable for internal and external installation. It provides safe, space-efficient access without the need for a conventional vertical lift shaft.
What you're getting
Every APL Inclined Platform Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
CapacityUp to 300kg225kg standard, 300kg optional

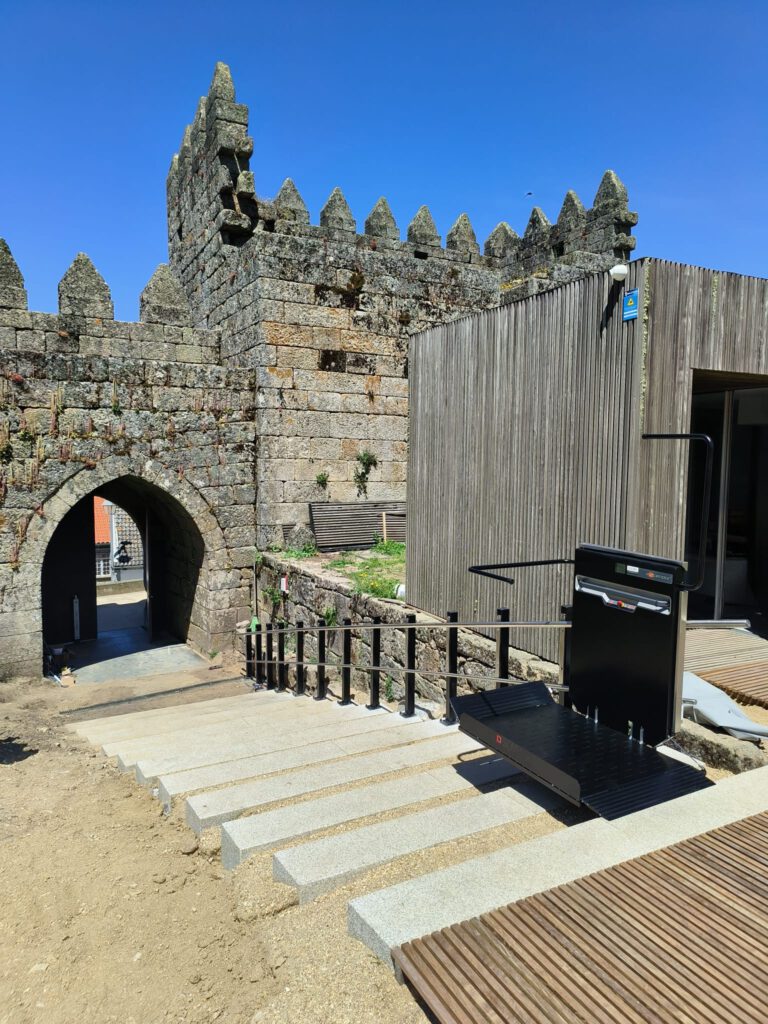

LocationInternal or externalIP54 rated for outdoor use
FinishBespoke options availableRAL 9006 silver as standard, any RAL colour or stainless steel
ApplicationsCurved or straightRails mounted on the wall or on steel stanchions
SpeedMax. 0.15m/sSmooth start and stop, slower in curves
Incline6° to 47°50° optional
Platform sizeFrom 800 x 650mm13 standard sizes up to 1,300 x 800mm
Space when folded255 to 315mmParks above or below the stairsExplore the APL Inclined Platform Lift
Select a hotspot to see each feature up close, then go back to explore the next one.
Tap a hotspot or choose a feature
Low space requirement
- Slim design that folds away against the wall
- Electrically foldable platform
- Protection against vandalism
Voice output and colour display
- Colour display with status indication
- Speech output for barrier-free communication
- GSM emergency call system
- Information on the operating status
Individual design
- Design your own lift
- Individual design
- Photo print (300dpi)
- RAL special colours
Indirect lighting
- LED lighting, freely selectable
- Feedback on the operating status
Design and quality
- High-quality powder coating
- Anti-slip surface
- Corrosion protection
- Scratch-resistant plastic
- Optional: any RAL colour or a stainless steel version
A finish to suit every space
Supplied in RAL 9006 silver metallic as standard, with any RAL colour, stainless steel, RGB LED lighting and a personalised platform design available.
APL Inclined Platform Lift specification
Standard ranges for the APL Inclined Platform Lift. Every lift is configured to your staircase, and our team will confirm the right specification for your project.
| APLInclined Platform Lift | |
|---|---|
| Carrying capacity | 225kg standard (300kg optional) |
| Platform sizes | 13 standard sizes from 800 x 650mm to 1,300 x 800mm |
| Inclination | 6° to 47° (50° optional) |
| Speed | Max. 0.15m/s |
| Routes | Straight or curved, with intermediate landings and multiple stops |
| Mounting | Wall mounted or on steel stanchions |
| Space when folded | 255 to 315mm |
| Drive | 24V battery drive with charger |
| Controls | Sensor keys on touchpad and colour touch display; wall-mounted key-operated and handheld remote controls |
| Safety | Automated safety arms, safety contacts on all sides, emergency stop and emergency call button, electrical emergency operation |
| Weather resistance | IP54, suitable for outdoor use |
| Finishes | RAL 9006 silver metallic as standard; any RAL colour or stainless steel optional |
| Options | RGB LED lighting, voice output, folding seat (40 x 40cm, max. 115kg) |
| Certification | EC-type examination to Machinery Directive 2006/42/EC; ISO 9001 |

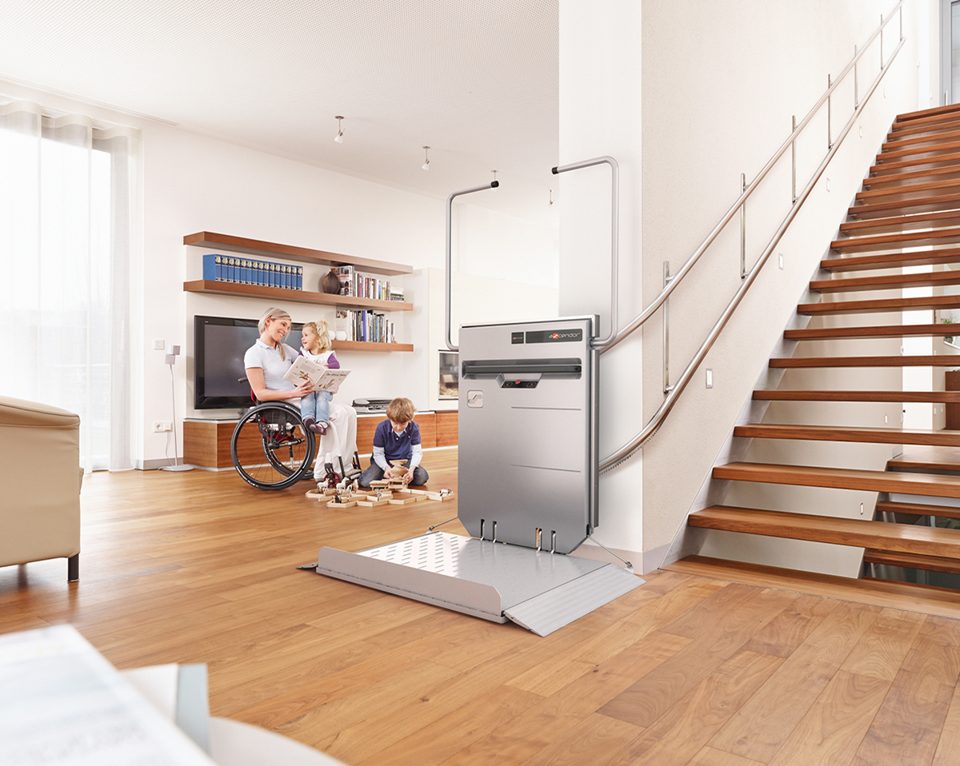

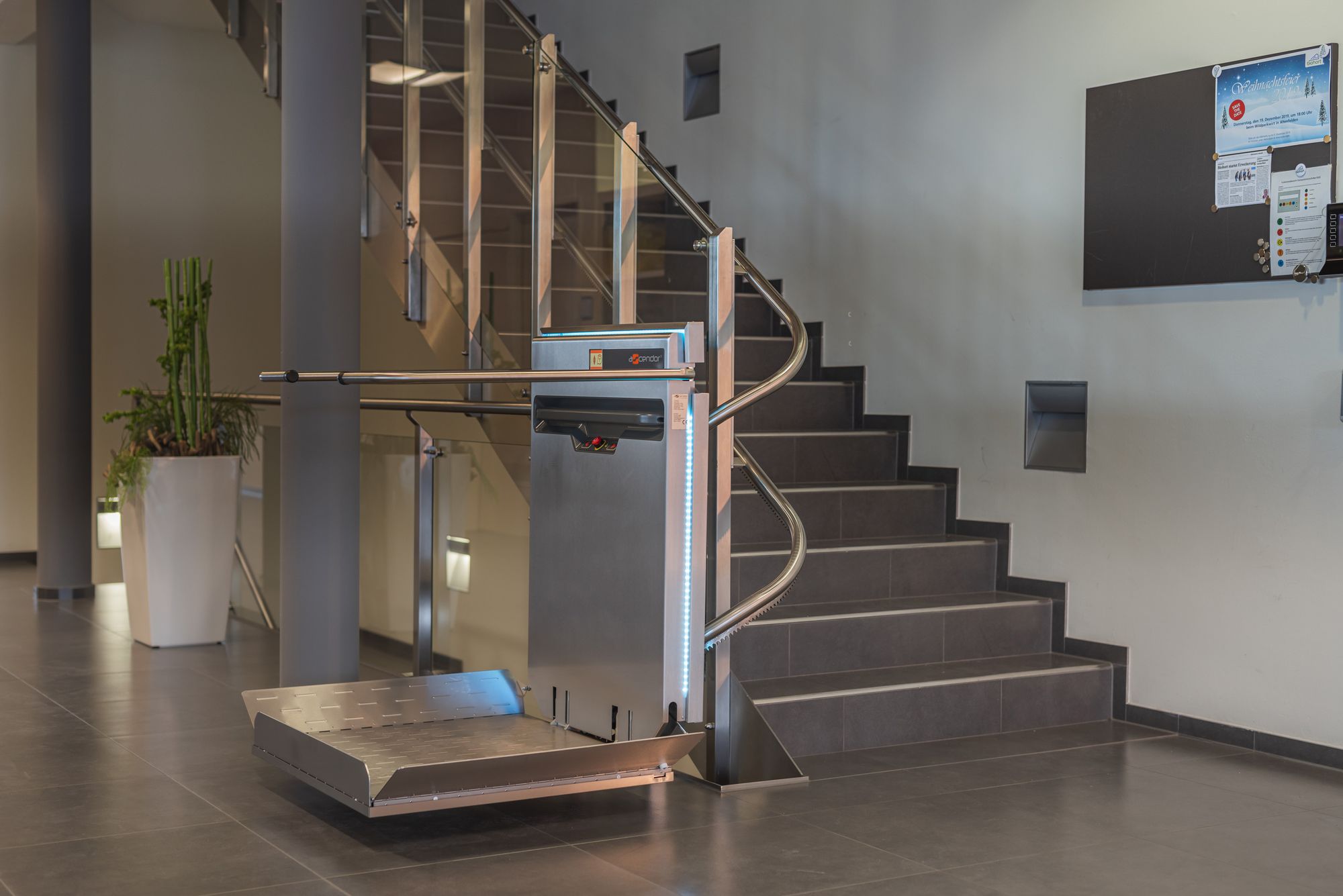

Step-free access on straight or curved staircases
The APL Inclined Platform Lift follows the line of your stairs, giving wheelchair users safe access without the need for a vertical lift shaft.
Versatile and accessible
Robust materials and user-friendly technologies make it an all-purpose solution for wheelchair users, in both public and private use.

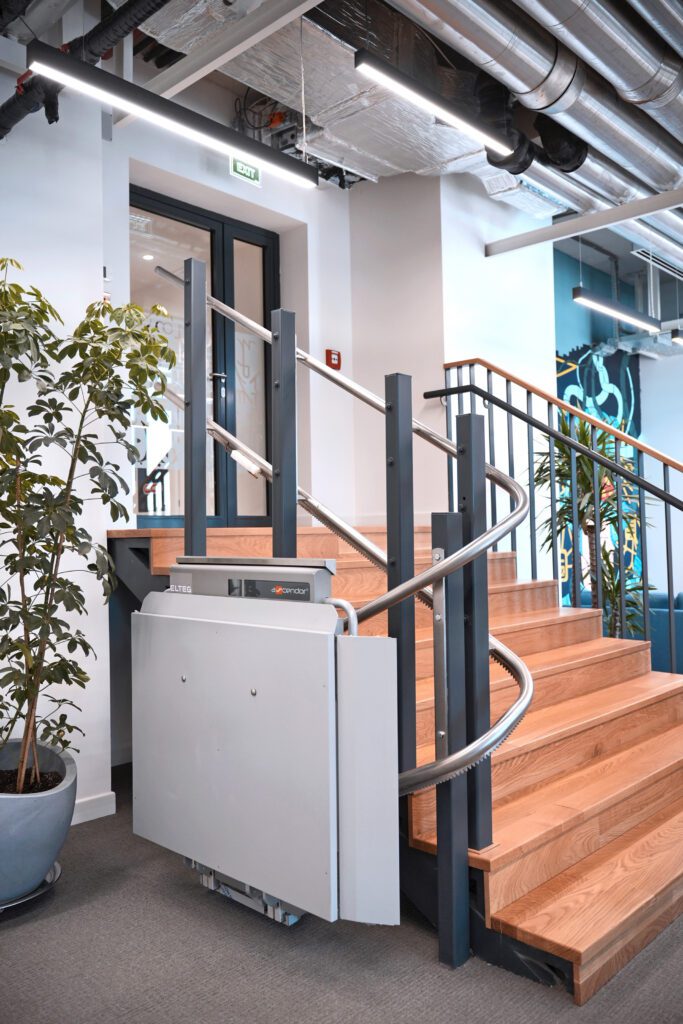

Straight or curved
Intermediate landings can be overcome with a curved travel rail, and rails can be mounted directly onto walls or attached to steel stanchions.
Works in a power cut
The lift is powered by batteries between stops, so it remains operational even in the event of a power failure.
Fewer call-outs
If a fault occurs, a colour display shows the cause and possible remedies, so 80% of all maintenance cases can be avoided.
Designed to blend in
Adjustable LED colours and individual designs on the platform help the lift integrate harmoniously into its surroundings.
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The regulations that apply depend on your building, how the lift is used and the specification you choose. The APL Inclined Platform Lift is supplied in line with EC-type examination to Machinery Directive 2006/42/EC, ISO 9001. Depending on your project, requirements can also include Part M of the Building Regulations and the Equality Act 2010.
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your incline lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Inclined Platform Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Inclined Platform Lift, and who is it best for?
The APL Inclined Platform Lift carries wheelchair users up straight or curved staircases in public and private buildings, inside or out, and can be fitted with a fold-down seat for users with impaired mobility. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Inclined Platform Lift need?
The APL Inclined Platform Lift runs on stainless steel rails mounted directly onto the wall or on steel stanchions, following straight or curved staircases with inclines from 6° to 47° (50° optional). When folded it projects just 255–315mm, and it needs a minimum stair width of 850–1,190mm depending on platform size and mounting. Exact rail routes, fixing points and remaining stair widths are project-specific. A survey should verify measured space, fixing points, access for installation and any builder or electrical works before the design is signed off.
What can the APL Inclined Platform Lift carry, and what is its load capacity?
The standard carrying capacity is 225kg, or 300kg as an option, with platform sizes from 800 × 650mm to 1,300 × 800mm.
What happens to the APL Inclined Platform Lift during a power cut or fault?
The APL Inclined Platform Lift runs on batteries between stops, so it keeps working during a power cut. If it isn't recharged for a long period, it switches off automatically to protect the batteries. It also has an emergency call button, electrical emergency operation and an optional two-way emergency call system. The full procedure will be demonstrated upon handover.
Can the APL Inclined Platform Lift support Part M and Equality Act accessibility requirements?
Yes, the APL Inclined Platform Lift can be supplied as Part M compliant provided the correct specification is met and site conditions allow it. The project team should assess the Equality Act 2010, relevant Building Regulations guidance, applicable lift standard, fire strategy, circulation space and user needs.

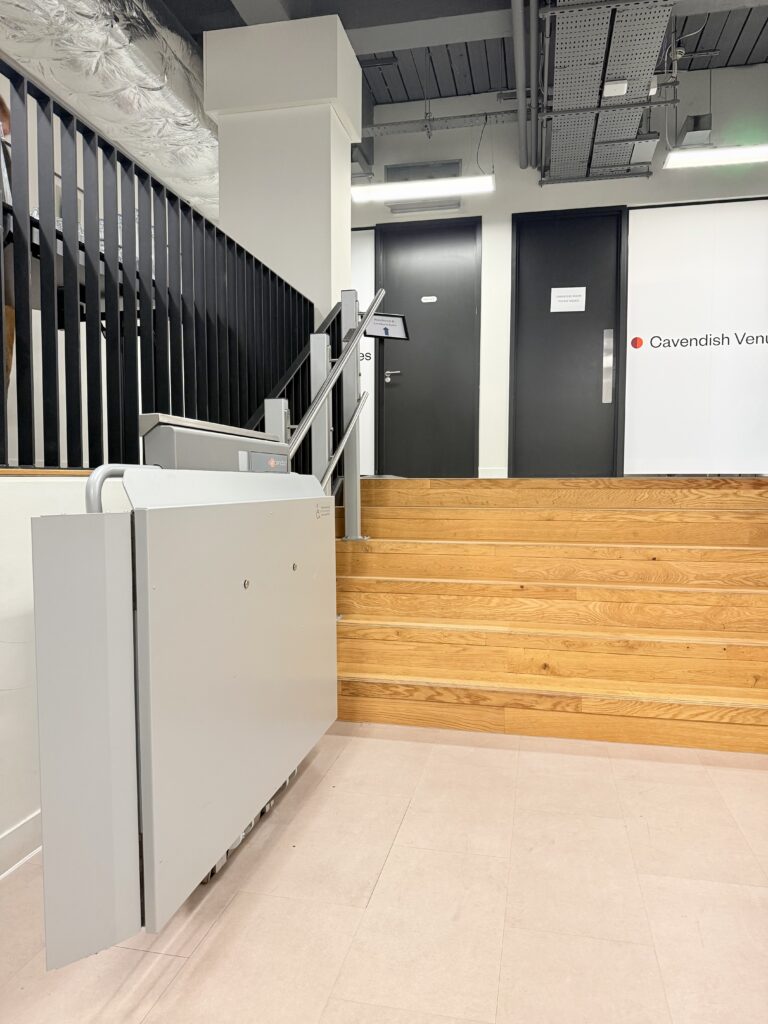

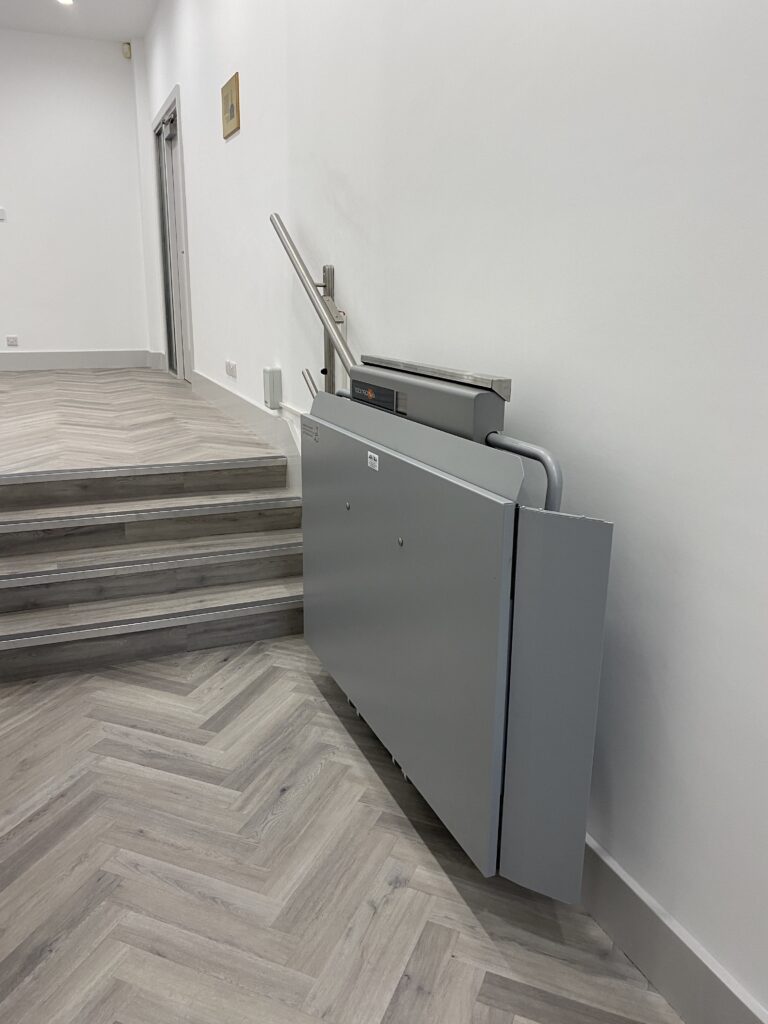

Will the APL Inclined Platform Lift block the staircase when it is not in use?
The platform folds to just 255–315mm and can park at the top or bottom of the stairs, keeping the staircase clear when not in use. The remaining stair width is site-specific, so the survey drawings will show the folded projection and confirm escape-route clearances with Building Control.
What travel, entry and finish options are available for the APL Inclined Platform Lift?
The APL Inclined Platform Lift follows straight or curved routes, including intermediate landings and multiple stops. It has automated safety arms and access ramps, with optional front access. It comes in silver as standard, or any RAL colour or stainless steel, with options including LED lighting, voice output and a folding seat. The final route, landings, platform size and finishes are recorded in the project specification after survey.
What affects the cost of an APL Inclined Platform Lift installation?
The cost of an APL Inclined Platform Lift depends on the staircase route (straight or curved), number of landings, platform size, finishes, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Inclined Platform Lift?
The APL Inclined Platform Lift is backed by a 2-year manufacturer’s warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
