APL Hydraulic Platform Lift
A space-efficient and highly adaptable accessibility solution, offering travel up to 7 metres with made-to-measure platform sizes for internal or external installations.
What you're getting
Every APL Hydraulic Platform Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
CapacityUp to 500kg400kg as standard, with a 500kg up-rated option
Max travel7,000mmHydraulic drive with emergency battery lowering
Platform sizeMade-to-measure sizesThree standard sizes from 900 x 1,250mm to 1,100 x 1,400mm, or built to fit your space
Entry optionsSelf-closing manual doorsSingle, through, adjacent or three-sided entry; automatic doors available
SizeMinimal pitJust 85mm pit depth
EnvironmentMarine-grade & flood-risk upgradesAnti-corrosion protection for coastal and poolside sites, and upgrades for flood-risk locations
StructureGlazed or solid panel structureSelf-supporting structure supplied with the liftLocationInternal or externalDesigned to be installed both internally and externally

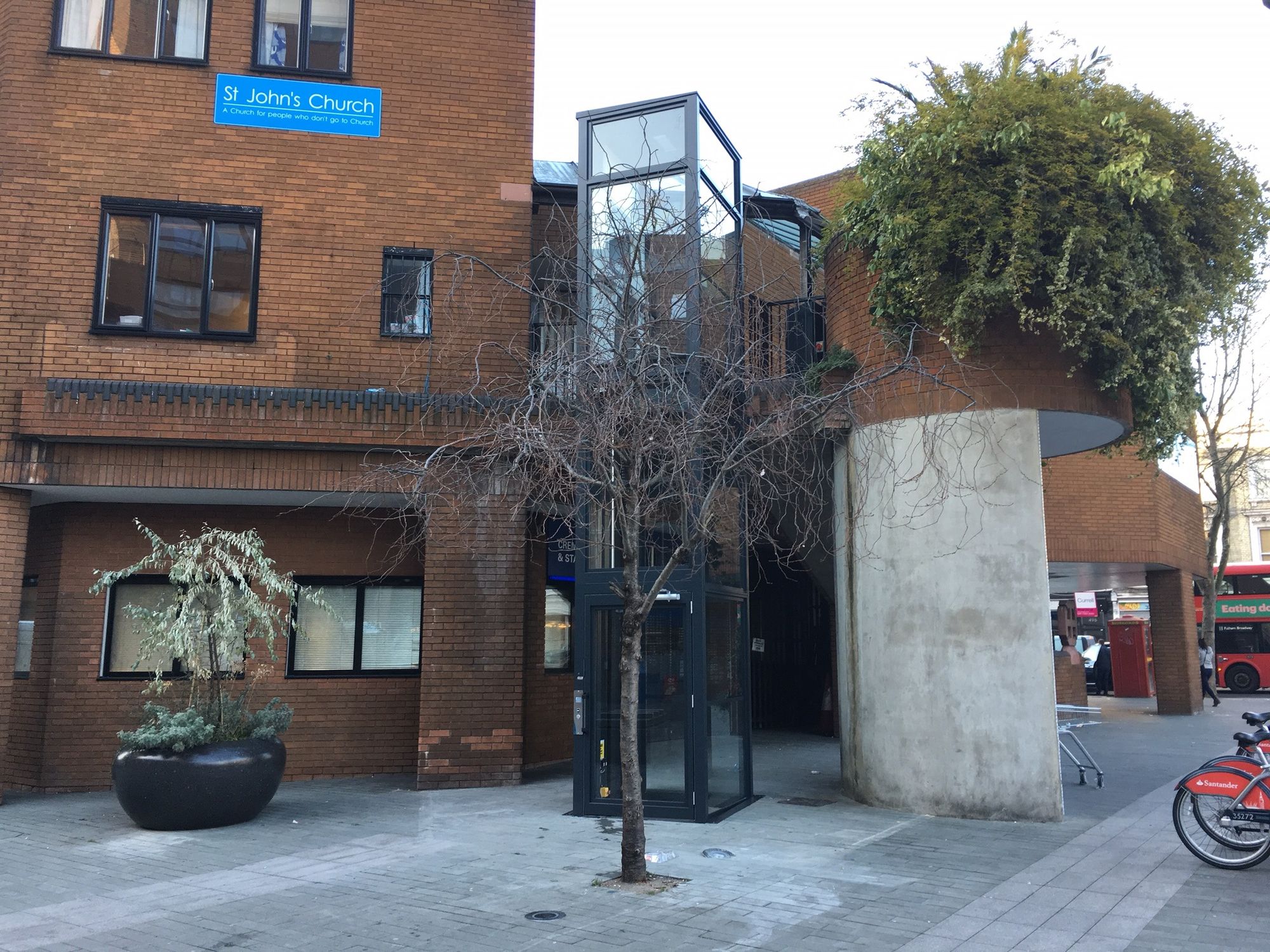

APL Hydraulic Platform Lift, glazed external towerMade to measure, ready for exposed sites
The APL Hydraulic Platform Lift isn’t limited to a handful of fixed sizes. Alongside three standard platforms, we can build the platform to fit the space you have, and upgrade the lift for coastal, poolside and flood-risk locations.

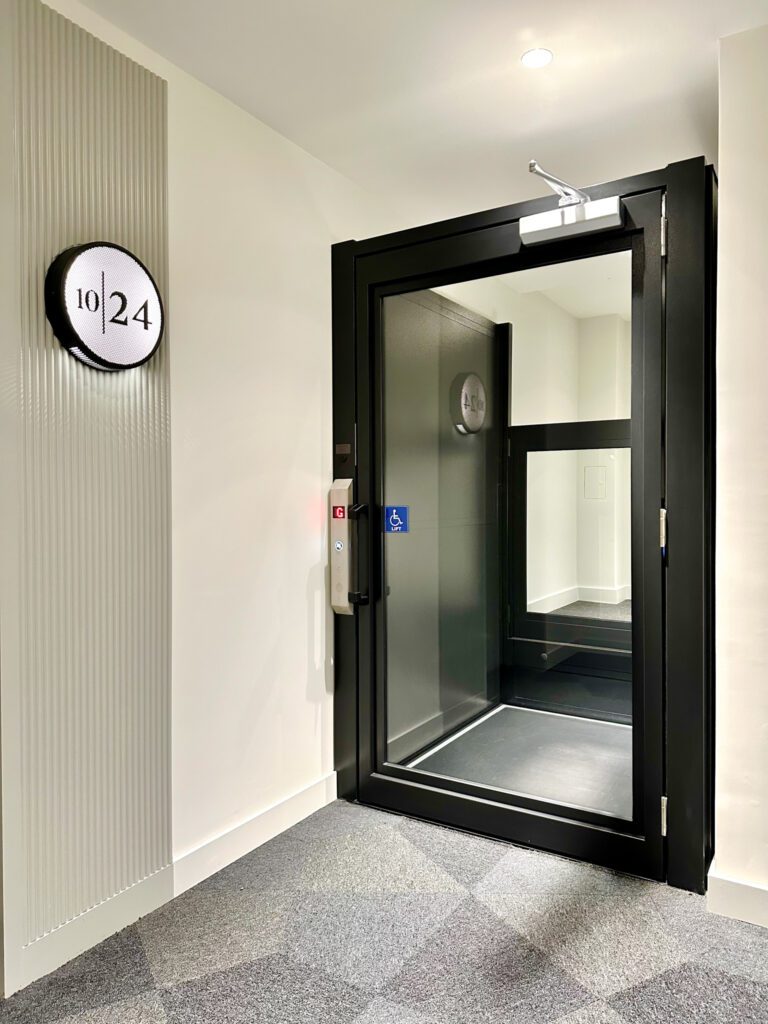

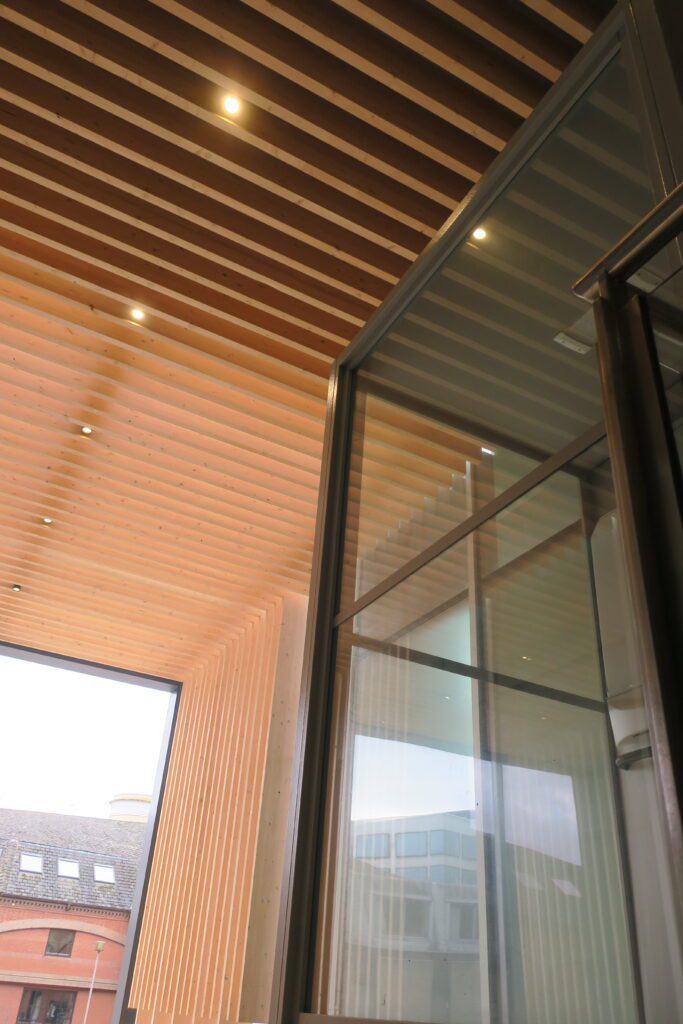

Installed inside and out
Glazed or powder coated cladding panels, standard or made-to-measure platform sizes, and marine-grade and flood-risk upgrades for exposed sites.
APL Hydraulic Platform Lift specification
Standard ranges for the APL Hydraulic Platform Lift. Every lift is configured to your building, and our team will confirm the right specification for your project.
| APLHydraulic Platform Lift | |
|---|---|
| Capacity | 400kg safe working load, with a 500kg up-rated option |
| Maximum travel | 7,000mm |
| Drive | Hydraulic |
| Pit depth | 85mm |
| Platform sizes | 900 x 1,250mm, 900 x 1,400mm or 1,100 x 1,400mm as standard; made-to-measure sizes available |
| Footprint | 1,120 x 1,400mm, 1,120 x 1,550mm or 1,320 x 1,550mm |
| Structure | Self-supporting, with powder coated or glazed cladding panels |
| Power supply | 240V single phase, 50Hz |
| Entrances | Single, through, adjacent or three-sided |
| Doors | Self-closing manual doors, automatic doors available |
| Standard features | Digital indicators on platform and landings, arrival chimes, platform lighting, emergency battery lowering |
| Installation | Internal or external |
| Environmental upgrades | Marine-grade anti-corrosion upgrade for coastal, poolside and exposed sites; flood-risk upgrade for vulnerable locations |
| Compliance | Machinery Directive 2006/42/EC, EN 81-41, Part M of the Building Regulations 2010; UKCA marked |
Case studies
The APL Hydraulic Platform Lift in action
An old, non-compliant open platform lift was replaced with a hydraulic platform lift built with a made-to-measure platform.
Hydraulic platform lifts for inside and outside
The APL Hydraulic Platform Lift comes complete with its own self-supporting structure, bringing step-free access to buildings inside or out.
Quality and reliability
A high quality and reliable hydraulic platform lift designed to be installed both internally and externally.
Marine-grade and flood-risk upgrades
Marine-grade anti-corrosion protection for coastal, poolside and exposed sites, and flood-risk upgrades for locations vulnerable to flooding.
Complete structure
The lift comes complete with a self-supporting structure, with a choice of glazed or powder coated cladding panels.
Flexible entry and sizing
Available in single, through, adjacent and three-sided entry, with three standard platform sizes or a made-to-measure platform to fit your space.
Rigorously tested
The APL Hydraulic Platform Lift has undergone rigorous testing, and we can provide documentation from Approved Test Houses to confirm it.
Compliance
Every lift built and installed complies with EN 81-41, the Machinery Directive and Part M of the Building Regulations, and is UKCA marked.
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The regulations that apply depend on your building, how the lift is used and the specification you choose. The APL Hydraulic Platform Lift is supplied in line with Machinery Directive 2006/42/EC, EN 81-41, Part M of the Building Regulations 2010, UKCA marked. Depending on your project, requirements can also include Part M of the Building Regulations and the Equality Act 2010.
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your platform lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Hydraulic Platform Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Hydraulic Platform Lift, and who is it best for?
The APL Hydraulic Platform Lift is a hydraulic platform lift for internal or external use, carrying 400kg (500kg up-rated option) with up to 7m of travel. It comes with its own self-supporting structure and needs only an 85mm pit, so it suits buildings without a lift shaft. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Hydraulic Platform Lift need?
The APL Hydraulic Platform Lift comes with a self-supporting structure clad in powder-coated or glazed panels, so no shaft is needed. It needs an 85mm pit, or an access ramp where a pit isn't possible, and standard footprints range from 1,120 × 1,400mm to 1,320 × 1,550mm, with bespoke sizes available. A dedicated 240V 13A supply is required. Exact dimensions, pit, headroom, structural support and openings are project-specific. A survey should verify measured space, fixing points, access for installation and any builder or electrical works before the design is signed off.
What can the APL Hydraulic Platform Lift carry, and what is its load capacity?
The APL Hydraulic Platform Lift carries up to 500kg: the safe working load is 400kg as standard, with a 500kg up-rated option. If a greater capacity is required, our APL Heavy-Duty Platform Lift is available with up to 1,000kg.
What happens to the APL Hydraulic Platform Lift during a power cut or fault?
The APL Hydraulic Platform Lift includes emergency battery lowering and a GSM autodialler as standard. The full procedure will be demonstrated upon handover.
Can the APL Hydraulic Platform Lift support Part M and Equality Act accessibility requirements?
Yes. The APL Hydraulic Platform Lift is designed to comply with Part M of the Building Regulations and EN 81-41, and is UKCA marked.
Is the APL Hydraulic Platform Lift suitable for coastal, poolside or flood-risk locations?
Yes. The APL Hydraulic Platform Lift is designed for internal and external installation, and can be upgraded with marine-grade anti-corrosion protection for coastal, poolside and other exposed sites, and with flood-risk protection for locations vulnerable to flooding. These upgrades are specified at design stage, so tell us about the site's exposure and drainage and we'll confirm the right package after survey.
What travel, entry and finish options are available for the APL Hydraulic Platform Lift?
The APL Hydraulic Platform Lift offers up to 7m of travel with same-side, through, adjacent or three-sided entry. Three standard platform sizes are available, or the platform can be made to measure to fit your space. Self-closing manual doors are standard, with powered doors, gates, centre-opening doors and 30- or 60-minute fire doors available, and the structure can be powder coated or glazed. Final travel, stops, door arrangement, clear openings and platform size are recorded in the project specification after survey.
What affects the cost of an APL Hydraulic Platform Lift installation?
The cost of an APL Hydraulic Platform Lift depends on travel, number of stops, platform size, doors, whether it's installed outdoors, environmental upgrades, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Hydraulic Platform Lift?
The APL Hydraulic Platform Lift is backed by a 1-year manufacturer’s warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
