APL Goods Scissor Lift
A heavy-duty, made-to-measure scissor lift designed to move goods safely and efficiently between levels. Suitable for warehouses, industrial units, retail spaces and commercial buildings.
What you're getting
Every APL Goods Scissor Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
CapacityUp to 10,000kgTwin or quad hydraulic cylinders
Max travelUp to 6,000mmEnclosure required for travel over 3,000mm
Entry optionsUp to 4-sided accessSingle swing interlocked gates and three-bar barriers
UsageGoods plus attendantConstant pressure controls with emergency stop
SizePit from 190mmDepth depends on travel; ramp for floor-mounted installations
LocationInternal or externalIncluding below-ground bin and bike stores
Platform sizeBespoke to siteTray depth to suit local floor finishes
FinishBespoke finishesPPC RAL 7014 or RAL 9005 as standardBuilt for the job
Scissor goods lifts at work in loading docks, light wells, bin stores and car showrooms, lifting heavy loads between levels safely and efficiently.
Heavy-duty scissor lifts for docks, stores and bin storage
The APL Goods Scissor Lift moves goods, roll cages, bins and bikes between levels, at sites from motorway services and shopping centres to heritage properties in central London.
Built for round-the-clock use
Case studies include a utility stores facility and a motorway services food store that run 24 hours a day, 365 days a year, where exceptional reliability was essential.
Heavy loads, flexible layouts
Capacities up to 10,000kg with single, through, adjacent, 3-sided or 4-sided entry, for roll cages, cable drums, dollies and bins.

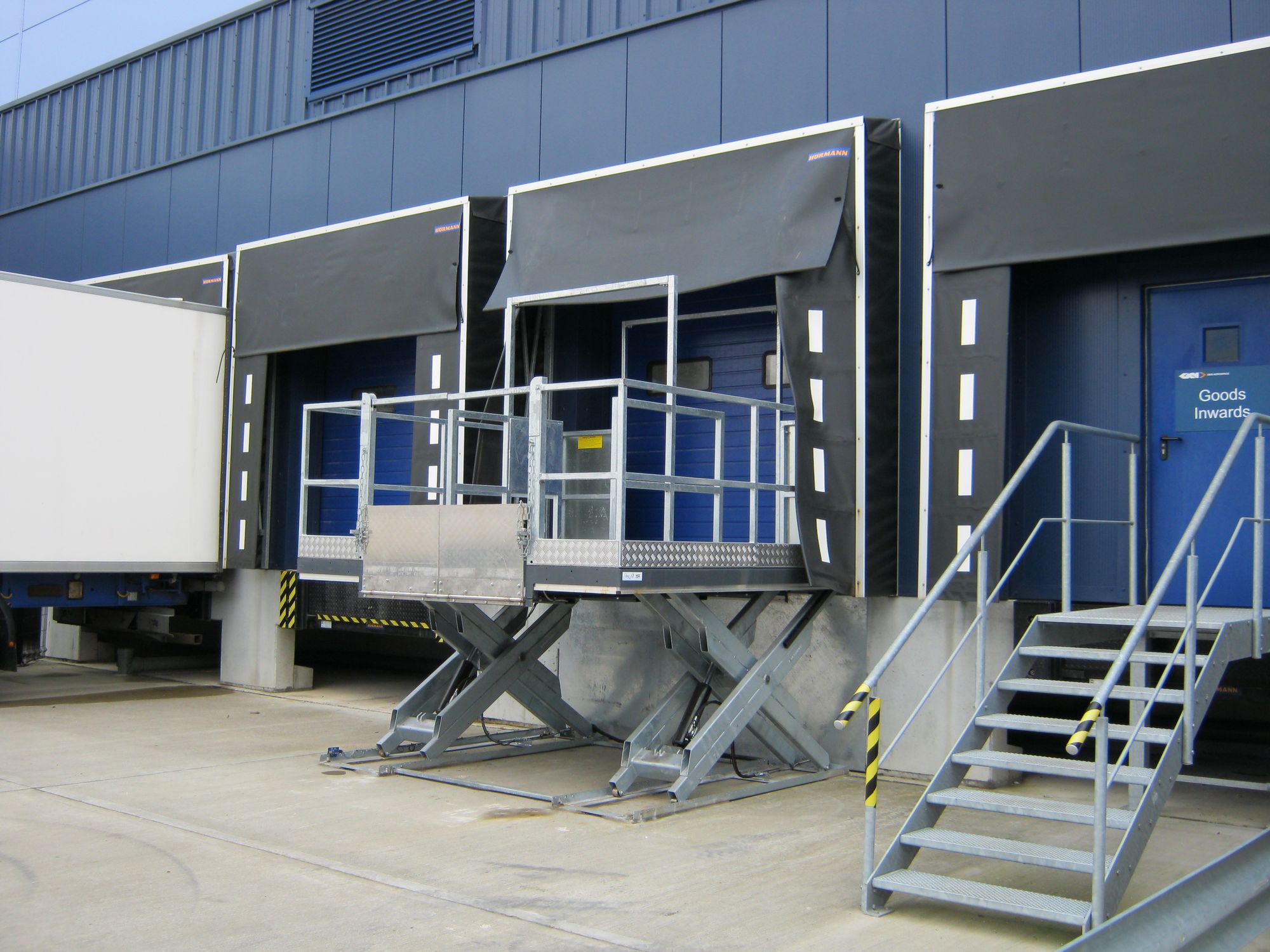

Pit-free dock lift
Our pit-free dock lift offers 3,000kg capacity, 1,600mm raised height and a 190mm lowered height, free standing or dock mounted, with a vast choice of bridge plate, ramp and barrier options.

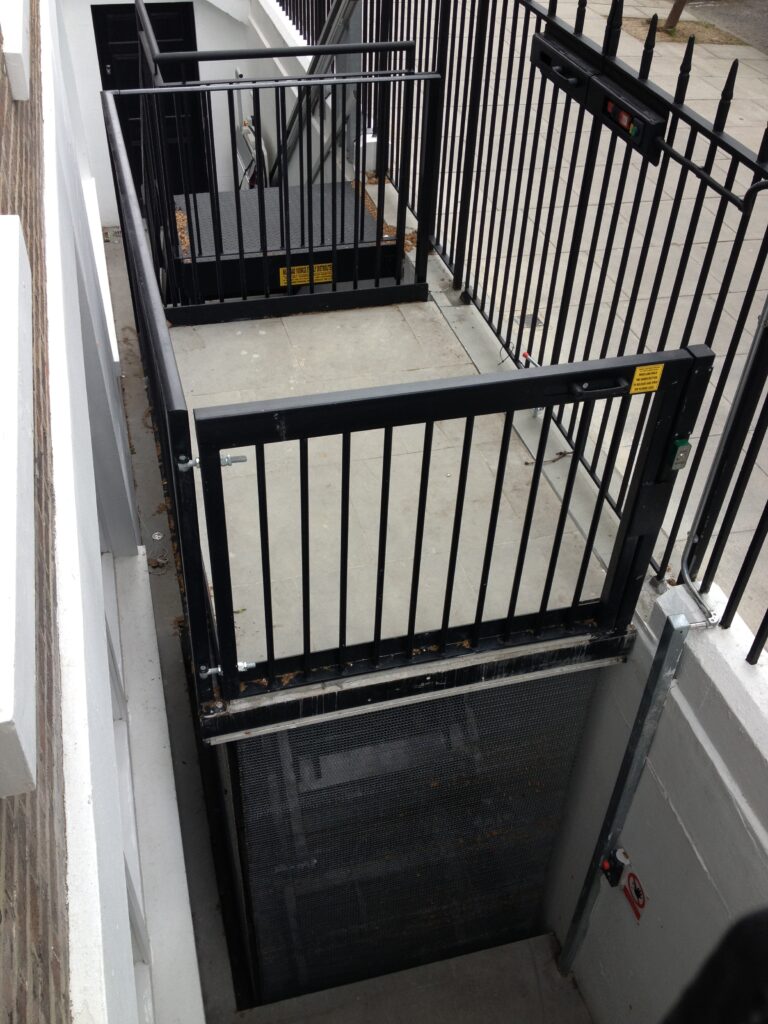

Hidden bin and bike storage
Limited outside space can be regained when refuse and recycling bins are hidden below ground, with the roof finished to match adjacent stone slabs.
Custom design service
We offer a custom design service to suit your exact requirements, including lifts designed to complement architecturally sensitive properties.
APL Goods Scissor Lift specification
Standard ranges for the APL Goods Scissor Lift. Every lift is configured to your site, and our team will confirm the right specification for your project.
| APLGoods Scissor Lift | |
|---|---|
| Usage | Goods plus attendant |
| Capacity | Up to 10,000kg |
| Maximum travel | Up to 6,000mm (enclosure required for travel over 3,000mm) |
| Drive | Scissor mechanism with twin or quad hydraulic cylinders |
| Configuration | Single entry, through car, adjacent entry, 3-sided or 4-sided |
| Controls | Constant pressure, with industrial up/down and emergency stop buttons |
| Power supply | 3ph 415V (1ph 240V optional for capacities under 2,000kg) |
| Barrier system | Single swing interlocked gates and three-bar barriers |
| Barrier height | 1,100mm as standard |
| Pit depth | Dependent on travel, minimum 190mm; ramp for floor-mounted installations |
| Environment | Internal or external |
| Finishes | PPC RAL 7014 or RAL 9005 as standard, other powder-coated options available; tray depth to suit local floor finishes |
| Communication | Alarm and autodialler |
| Compliance | EN1570.1/2 |
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The regulations that apply depend on your building, how the lift is used and the specification you choose. The APL Goods Scissor Lift is supplied in line with EN1570.1/2. Goods lifts used at work must also be thoroughly examined and maintained in line with the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER) and the Provision and Use of Work Equipment Regulations 1998 (PUWER).
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your goods lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Goods Scissor Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Goods Scissor Lift, and who is it best for?
The APL Goods Scissor Lift is a scissor lift for goods plus an attendant, carrying up to 10,000kg with up to 6m of travel, inside or outside. Typical uses include loading docks, roll cages, bins and bikes, and hidden below-ground bin stores. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Goods Scissor Lift need?
The APL Goods Scissor Lift is built to suit the site. It needs a pit whose depth depends on the travel (minimum 190mm), or it can be floor mounted with a ramp, and an enclosure is required for travel over 3m. Power is 415V three-phase, or 240V single-phase for capacities under 2,000kg. On suitable projects it can be installed below ground. Exact dimensions, pit, structural support and openings are project-specific. A survey should verify measured space, fixing points, access for installation and any builder or electrical works before the design is signed off.
What can the APL Goods Scissor Lift carry, and what is its load capacity?
The capacity is up to 10,000kg.
What happens to the APL Goods Scissor Lift during a power cut or fault?
In the event of a power cut, the APL Goods Scissor Lift, if fitted with a battery backup, can lower to the bottom floor, allowing the attendant (if present) to exit the lift. An alarm and autodialler are also available, and the full procedure will be demonstrated upon handover.
What inspections and workplace regulations apply to the APL Goods Scissor Lift?
Goods lifts used at work fall under the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER), which require a thorough examination by a competent person at least every 12 months, and the Provision and Use of Work Equipment Regulations 1998 (PUWER), which cover safe use, maintenance and training. The APL Goods Scissor Lift is designed to carry goods, not passengers. We can service the lift and help you keep the right records, and we’ll confirm the requirements for your site during survey.
Can the APL Goods Scissor Lift be hidden below ground when not in use?
Yes. The APL Goods Scissor Lift can be installed below ground with its roof finished to match the surrounding paving, so bins are hidden when not in use. Feasibility depends on drainage, waterproofing, structural design and how the surface above is used, so this requires a bespoke survey and engineered design.
What travel, entry and finish options are available for the APL Goods Scissor Lift?
The APL Goods Scissor Lift offers up to 6m of travel with single, through, adjacent, three- or four-sided entry, and interlocked swing gates with three-bar barriers at 1,100mm. It's powder coated in RAL 7014 or 9005 as standard, with other colours available. Final travel, stops, door arrangement, clear openings, platform size and finishes are recorded in the project specification after survey.
What affects the cost of an APL Goods Scissor Lift installation?
The cost of an APL Goods Scissor Lift depends on load capacity, travel, platform size, gates and barriers, whether it's installed below ground, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Goods Scissor Lift?
The APL Goods Scissor Lift is backed by a 3-year manufacturer's warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
