APL Heavy-Duty Platform Lift
A robust, space-efficient solution for commercial and public buildings, carrying up to 1,000kg with bespoke design and finish options.
What you're getting
Every APL Heavy-Duty Platform Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
Capacity1,000kgStandard platforms up to 1,400 x 2,500mm
Max travelUp to 13,000mmServing 5 stops
LocationInternalRecommended for indoor installation
SizeMinimal pit & headroom110mm pit and 2.3m top height
FinishBespoke finishesOther RAL colours on request, glazed shaft panels optional
Speed0.15m/sSelf-sustaining nut and screw drive
Entry optionsSwing doorDoors available on 3 sides
Platform sizeUp to 55 sizesWidths 1,000 to 1,400mm, depths 1,500 to 2,500mmA finish to suit every space

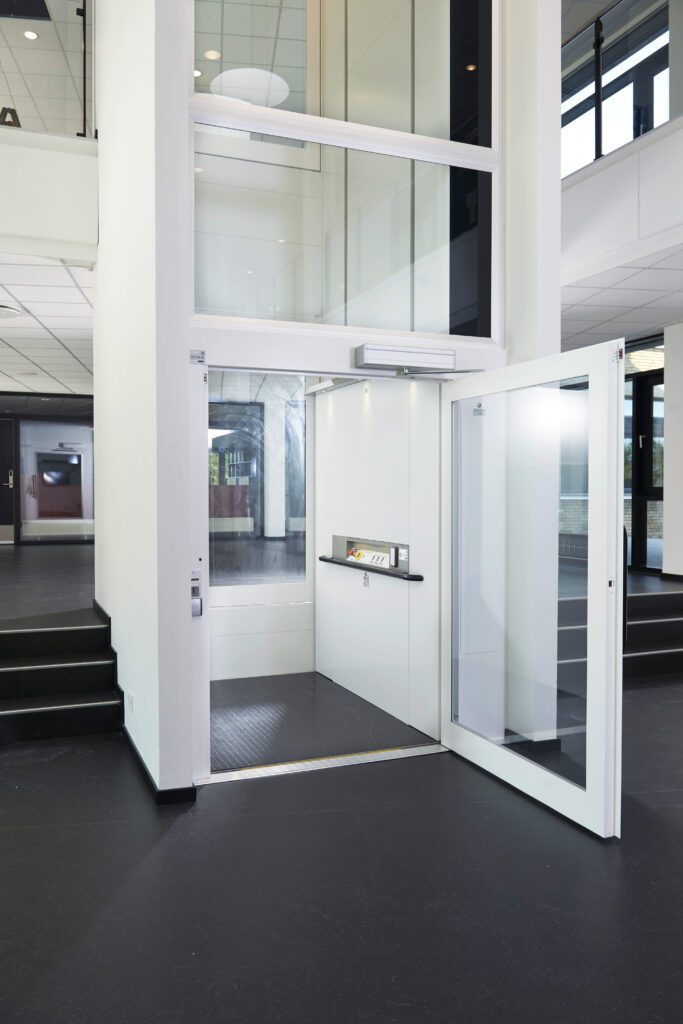

White laminated shaft panels and a powder-coated platform come as standard, with glazed panels and other RAL colours available to suit your building.
APL Heavy-Duty Platform Lift specification
Standard ranges for the APL Heavy-Duty Platform Lift. Every lift is configured to your building, and our team will confirm the right specification for your project.
| APLHeavy-Duty Platform Lift | |
|---|---|
| Rated load | 1,000kg |
| Maximum travel | 13m, serving 5 stops |
| Speed | Maximum 0.15m/s |
| Standard platform sizes (w x d) | 1,400 x 2,000mm, 1,400 x 2,500mm or 1,100 x 2,200mm |
| Standard lift dimensions (w x d) | 1,830 x 2,080mm, 1,830 x 2,580mm or 1,530 x 2,280mm (plus 30mm depending on door position) |
| Other platform sizes | Widths 1,000 to 1,400mm and depths 1,500 to 2,500mm |
| Pit and top height | 110mm pit, 2.3m top height |
| Drive system | Self-sustaining nut and screw, 4kW motor, PLC control |
| Power supply | 380 to 400V three phase, 50/60Hz, 16A, with frequency controller |
| Operation | Landing call buttons; hold-to-run platform buttons, all tactile with braille |
| Doors | Swing doors, available on 3 sides; automatic door opener optional |
| Emergency lowering | Battery emergency lowering as standard |
| Finishes | White (RAL 9003) laminated sandwich shaft panels, glazed panels optional; powder-coated platform in RAL 9003 or other RAL colours; black rubber flooring |
| Certification | Machinery Directive 2006/42/EC |
Case studies
The APL Heavy-Duty Platform Lift in action

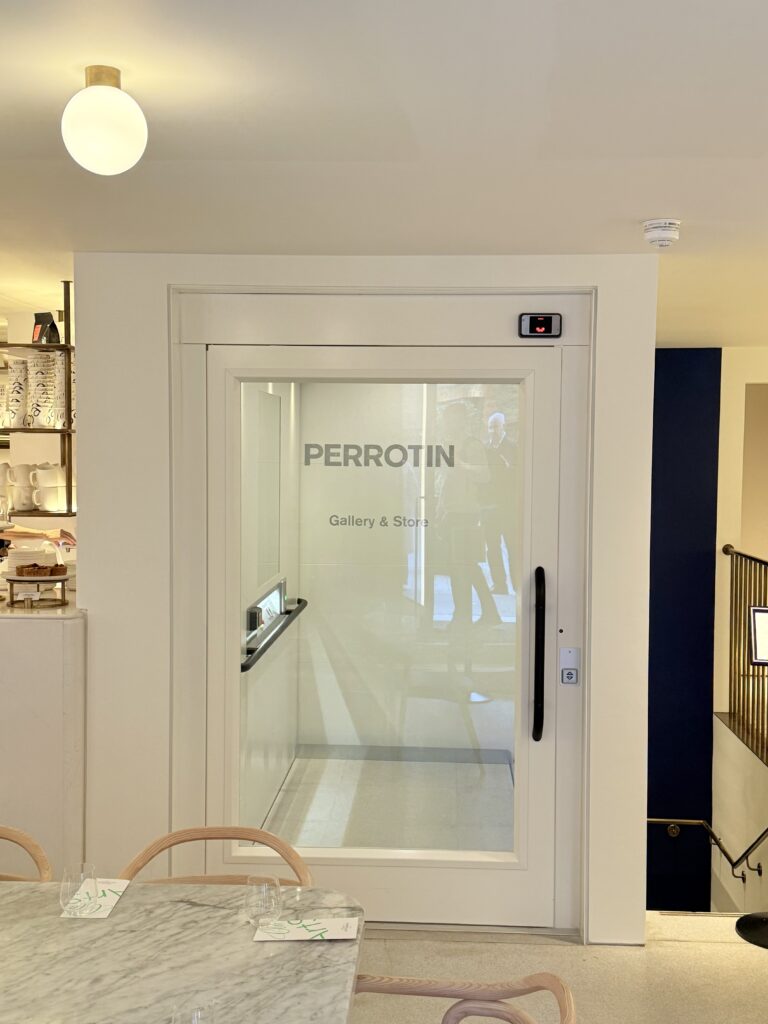

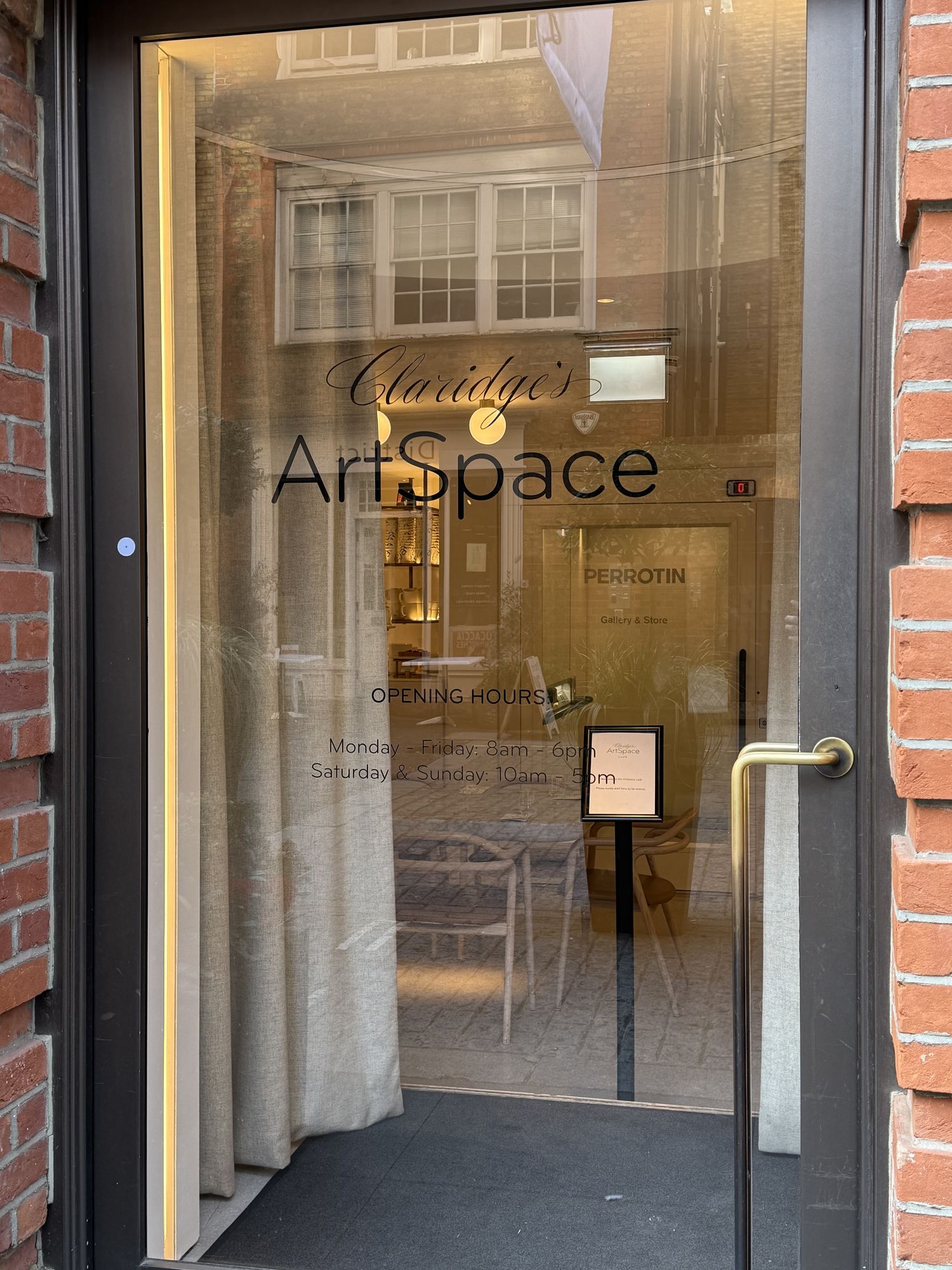

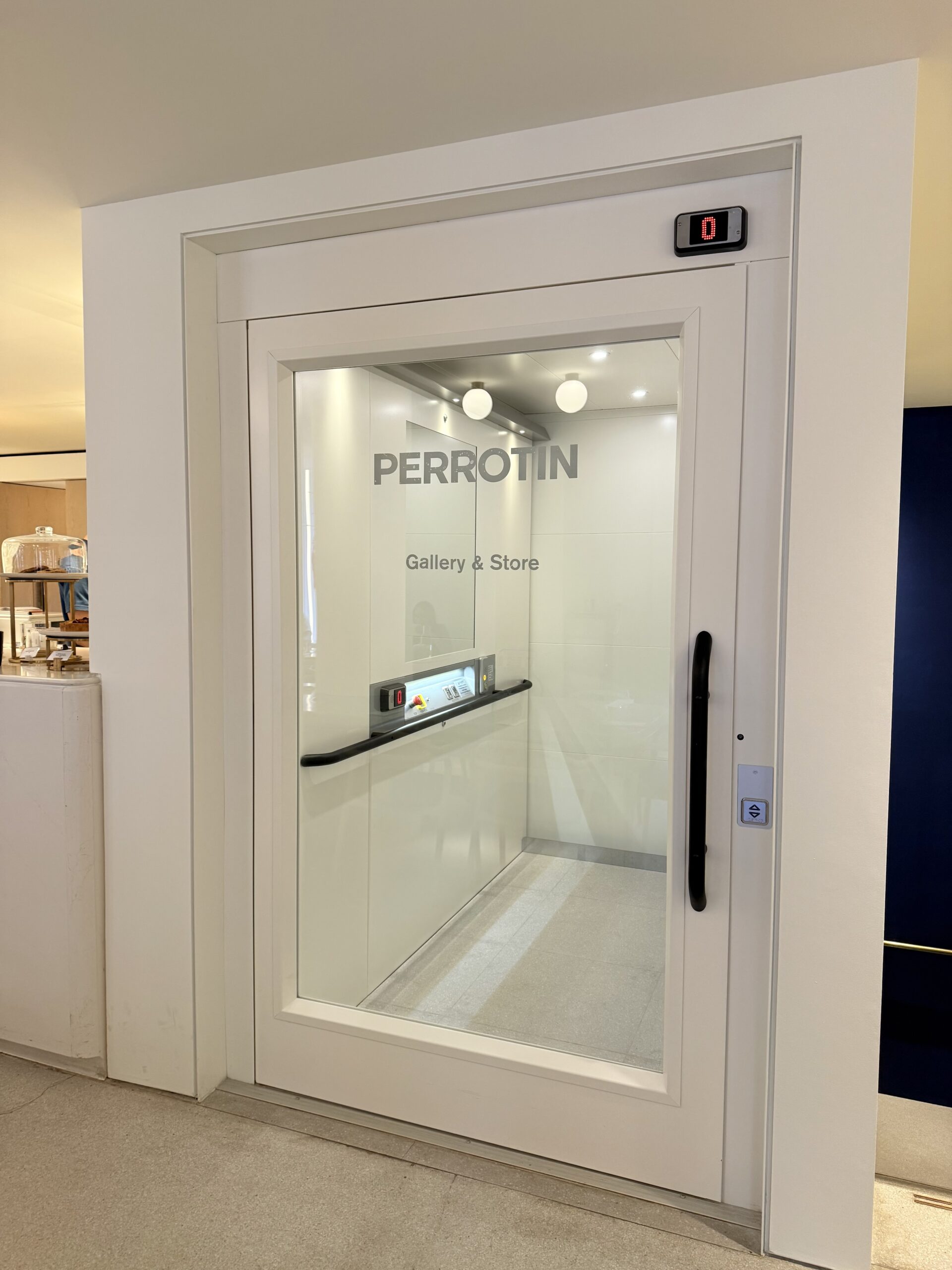

A discreet lift that carries goods and gives the public step-free access down to the gallery.
A robust, space-efficient platform lift for heavier loads
The APL Heavy-Duty Platform Lift carries up to 1,000kg on a self-sustaining nut and screw drive, with a shaft pit of just 110mm.
Reliable drive
An ultra-reliable and low-maintenance self-sustaining nut and screw drive system makes the lift robust, reliable and designed for maximum flexibility.
Sized to fit
Up to 55 different platform sizes for building regulation compliance, with a shaft pit of only 110mm, so the lift fits the exact needs of your building.
Modern platform
Every lift comes with a modern full-height platform back, complete with in-built lighting.
Quick installation
Thanks to its innovative and intuitive design, installation takes only 2 to 4 days.
Safe, simple controls
Battery emergency lowering is included as standard, and all buttons are tactile with braille.
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The regulations that apply depend on your building, how the lift is used and the specification you choose. The APL Heavy-Duty Platform Lift is supplied in line with Machinery Directive 2006/42/EC. Depending on your project, requirements can also include Part M of the Building Regulations and the Equality Act 2010.
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your platform lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Heavy-Duty Platform Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Heavy-Duty Platform Lift, and who is it best for?
The APL Heavy-Duty Platform Lift uses a self-sustaining nut-and-screw drive and is rated at 1,000kg, with up to 13m of travel over 5 stops. It's available in up to 55 platform sizes and is recommended for indoor installation. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Heavy-Duty Platform Lift need?
The APL Heavy-Duty Platform Lift needs a 110mm pit and 2.3m top height, with a 380–400V three-phase 16A supply. Standard platforms are 1,400 × 2,000mm, 1,400 × 2,500mm and 1,100 × 2,200mm, needing lift footprints of 1,830 × 2,080mm, 1,830 × 2,580mm and 1,530 × 2,280mm, and installation takes 2–4 days. Exact dimensions, pit, headroom, structural support and openings are project-specific. A survey should verify measured space, fixing points, access for installation and any builder or electrical works before the design is signed off.
What can the APL Heavy-Duty Platform Lift carry, and what is its load capacity?
The rated load is 1,000kg. If a greater capacity is required, our APL Heavy-Duty Cabin Lift is available with up to 1,500kg.
What happens to the APL Heavy-Duty Platform Lift during a power cut or fault?
The APL Heavy-Duty Platform Lift includes battery emergency lowering as standard, and a telephone can be added. The full procedure will be demonstrated upon handover.
Can the APL Heavy-Duty Platform Lift support Part M and Equality Act accessibility requirements?
Yes, the APL Heavy-Duty Platform Lift is available in up to 55 platform sizes for building regulation compliance and can be supplied as Part M compliant provided the correct specification is met and site conditions allow it. The project team should assess the Equality Act 2010, relevant Building Regulations guidance, applicable lift standard, fire strategy, circulation space and user needs.
Can the APL Heavy-Duty Platform Lift carry both people and heavy goods?
Yes. The APL Heavy-Duty Platform Lift is rated at 1,000kg with platforms up to 1,400 × 2,500mm, large enough for heavy goods such as pallet trucks as well as passengers. The declared use, platform size and controls are set in the specification to suit how the lift will be used.
What travel, entry and finish options are available for the APL Heavy-Duty Platform Lift?
The APL Heavy-Duty Platform Lift offers up to 13m of travel and 5 stops, with swing doors on up to three sides and an automatic door opener as an option. The shaft is white laminated sandwich panel as standard with glazed panels optional, and the platform can be powder coated in any RAL colour. Final travel, stops, door arrangement, clear openings, platform size and finishes are recorded in the project specification after survey.
What affects the cost of an APL Heavy-Duty Platform Lift installation?
The cost of an APL Heavy-Duty Platform Lift depends on travel, number of stops, platform size, doors, finishes, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Heavy-Duty Platform Lift?
All Alliance lifts are backed by a manufacturer’s warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
