APL Screw-Driven Platform Lift
A low-maintenance platform lift with a self-sustaining nut and screw drive, carrying up to 500kg with a pit of just 50mm and 30 platform sizes to suit your building.
What you're getting
Every APL Screw-Driven Platform Lift is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
Capacity500kgRated load
Max travelUp to 13,000mmNut and screw drive with safety nut
Platform size30 standard sizesWidths 700 to 1,100mm, depths 1,100 to 1,600mm
SizeMinimal pitJust 50mm pit depth
StructureSelf-supporting shaftSandwich panel shaft, glass panels optional
Entry optionsSwing doorsEI60 fire-rated landing doors available
FinishRAL 9003 white as standardAnodised aluminium profiles, RAL colour profiles optional
ControlsPlatform control panelWith two-way emergency communicationA finish to suit every space

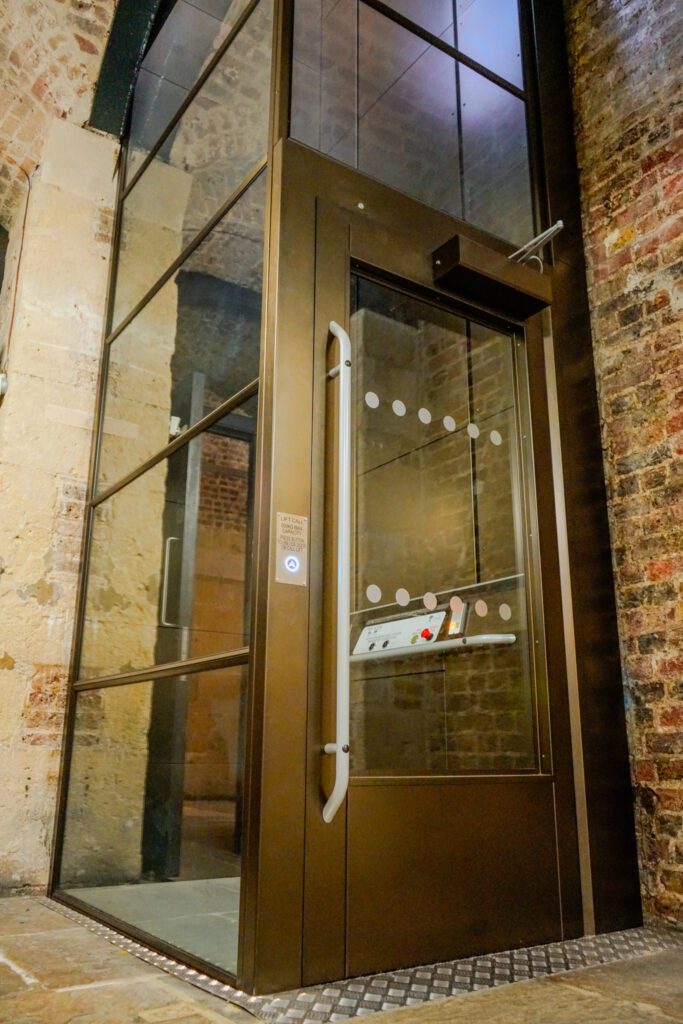

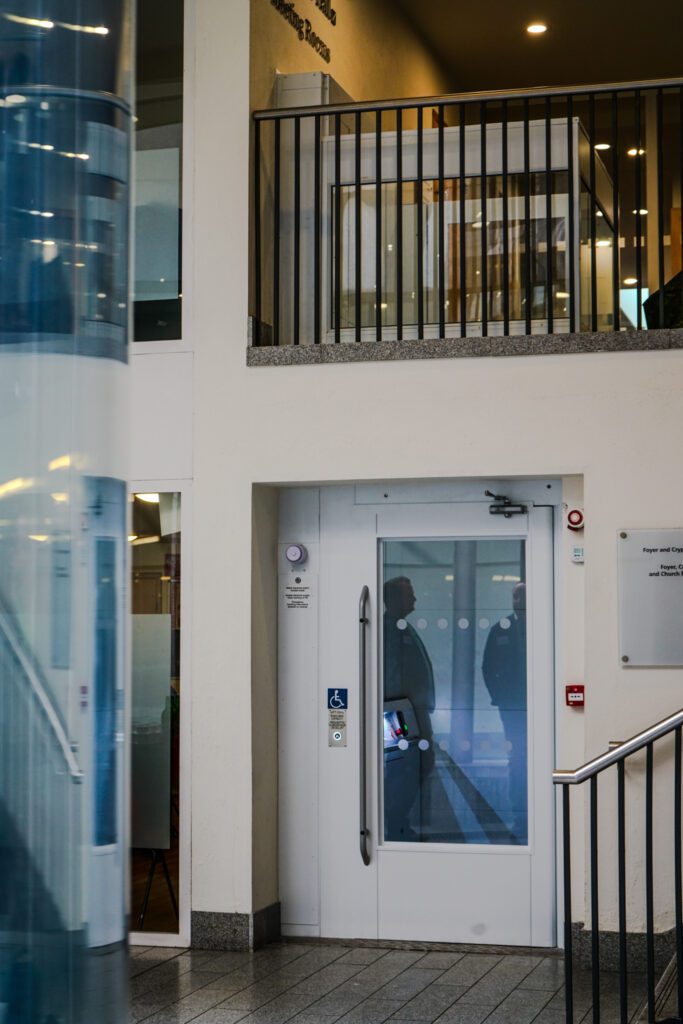

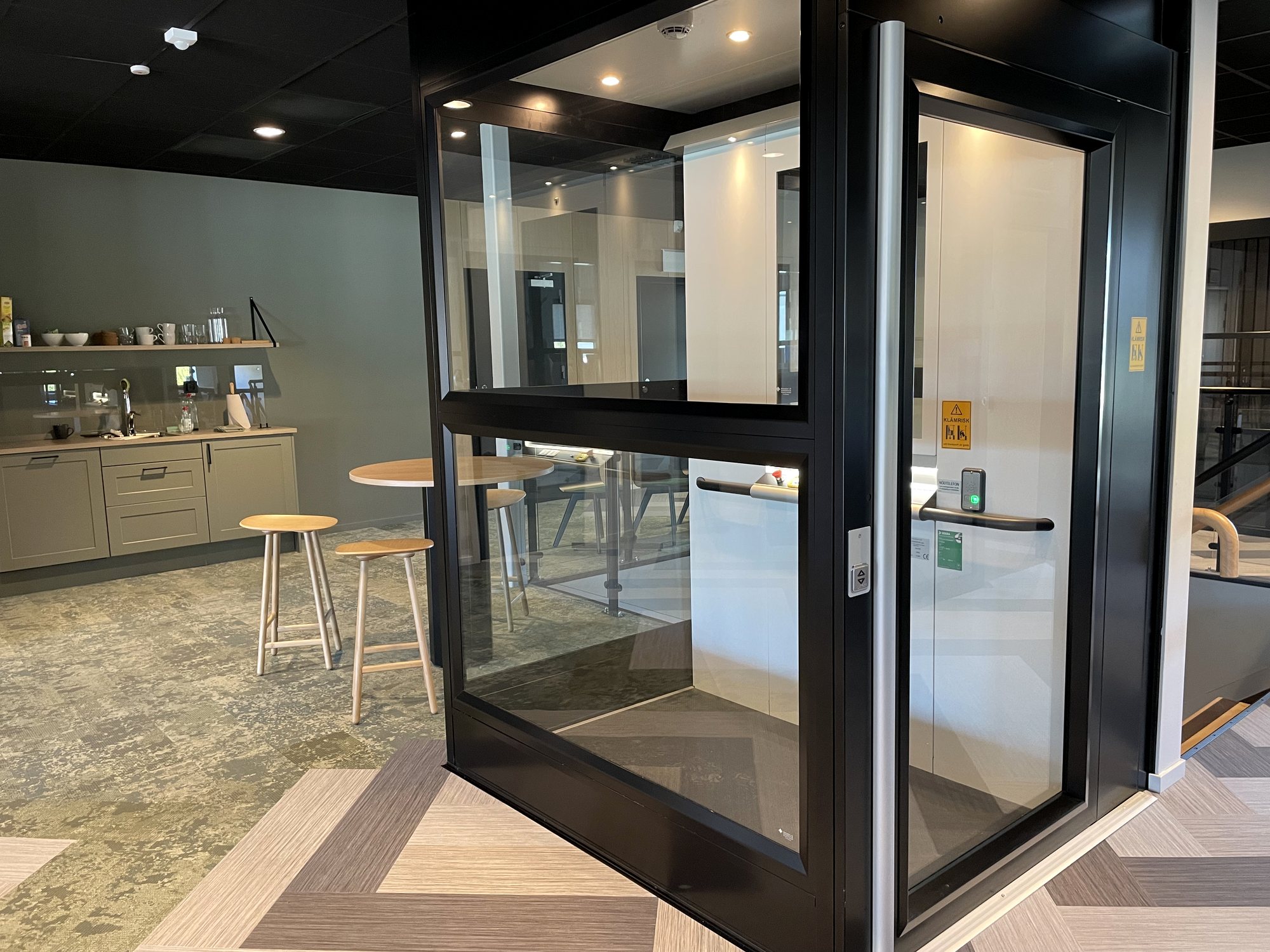

RAL 9003 white with anodised aluminium profiles as standard, with optional glass shaft panels, RAL-coloured aluminium profiles and an LED shaft ceiling.
APL Screw-Driven Platform Lift specification
Standard ranges for the APL Screw-Driven Platform Lift. Every lift is configured to your building, and our team will confirm the right specification for your project.
| APLScrew-Driven Platform Lift | |
|---|---|
| Capacity | 500kg rated load |
| Maximum travel | Up to 13,000mm |
| Drive | Self-sustaining nut and screw, with safety nut |
| Pit depth | 50mm minimum |
| Platform sizes | 30 standard sizes: widths 700, 800, 900, 1,000 or 1,100mm; depths 1,100 to 1,600mm in 100mm steps |
| Shaft | Self-supporting shaft in sandwich panels; glass panels optional |
| Doors | Swing landing doors; EI60 fire-rated doors available (EN 81-58) |
| Finish | RAL 9003 white with anodised aluminium corner profiles; RAL-coloured aluminium profiles optional |

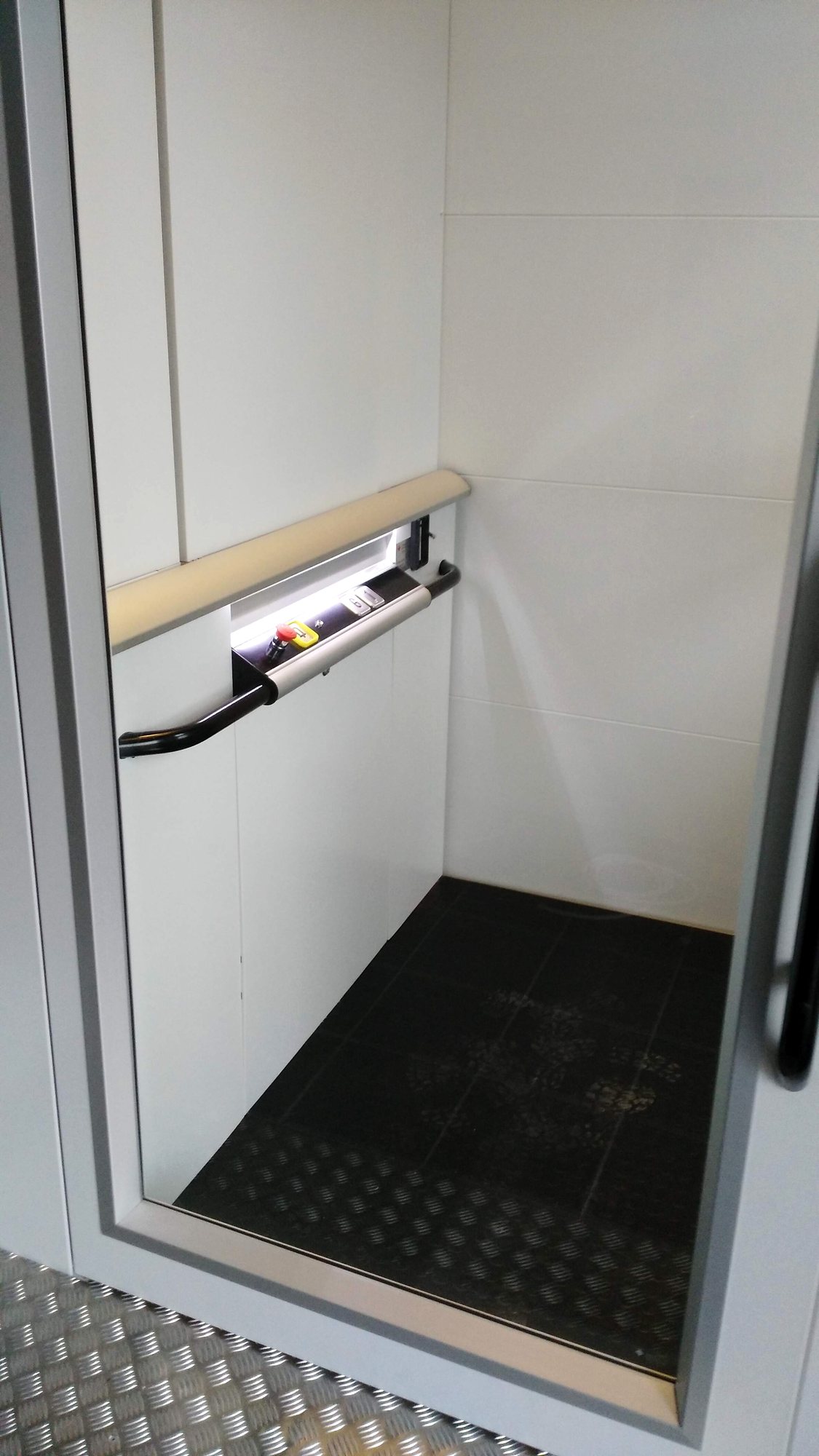

| Controls | Control panel on the platform; landing push buttons with key switch options |
| Emergency | Two-way emergency communication on the platform |
| Options | Glass shaft panels, LED shaft ceiling panel, fire-rated landing doors |
A dependable screw-driven platform lift for almost any building
The APL Screw-Driven Platform Lift pairs a self-sustaining nut and screw drive with a 50mm pit and its own shaft, making step-free access simple to add.
Reliable drive
A self-sustaining nut and screw drive with a safety nut gives smooth, dependable travel with low maintenance.
Minimal building work
It needs a pit of just 50mm and comes with its own sandwich-panel shaft, so no conventional lift shaft is required.
Made to fit
30 standard platform sizes, from 700 x 1,100mm to 1,100 x 1,600mm, let the lift suit the space you have.
Fire-rated doors
EI60 fire-rated landing doors are available, type-examined to EN 81-58.
Useful options
Glass shaft panels, RAL-coloured aluminium profiles, an LED shaft ceiling and key switch controls.
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
The regulations that apply depend on your building, how the lift is used and the specification you choose. Depending on your project, requirements can also include Part M of the Building Regulations and the Equality Act 2010.
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your platform lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Screw-Driven Platform Lift questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Screw-Driven Platform Lift, and who is it best for?
The APL Screw-Driven Platform Lift is a platform lift with a self-sustaining nut and screw drive, carrying up to 500kg with up to 13m of travel. It comes with its own shaft and needs just a 50mm pit, so it suits buildings where a conventional lift shaft would be impractical. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Screw-Driven Platform Lift need?
The APL Screw-Driven Platform Lift comes with its own self-supporting shaft in sandwich panels, so no builder’s lift shaft is needed, and it requires a pit of just 50mm. It’s available in 30 standard platform sizes, from 700 × 1,100mm to 1,100 × 1,600mm. Exact dimensions, pit, headroom, structural support and fixing points are project-specific. A survey should verify measured space, wall fixings, access for installation and any builder or electrical works before the design is signed off.
What can the APL Screw-Driven Platform Lift carry, and what is its load capacity?
The APL Screw-Driven Platform Lift has a rated load of 500kg. If a greater capacity is required, our APL Heavy-Duty Platform Lift is available with up to 1,000kg.
What happens to the APL Screw-Driven Platform Lift during a power cut or fault?
The platform is fitted with two-way emergency communication, so users can call for help if the lift stops. Emergency lowering and rescue procedures are confirmed for your project and demonstrated at handover.
Can the APL Screw-Driven Platform Lift support Part M and Equality Act accessibility requirements?
Yes. The APL Screw-Driven Platform Lift can be supplied to support Part M compliance, provided the correct specification is met and site conditions allow it. The project team should assess the Equality Act 2010, relevant Building Regulations guidance, applicable lift standard, fire strategy, circulation space and user needs.
Can the APL Screw-Driven Platform Lift have fire-rated doors?
Yes. EI60 fire-rated landing doors are available, type-examined to EN 81-58. Your fire strategy will determine where fire-rated doors are needed, and we’ll confirm the door specification after survey.
What travel, entry and finish options are available for the APL Screw-Driven Platform Lift?
The APL Screw-Driven Platform Lift offers up to 13m of travel, with swing landing doors and EI60 fire-rated doors available. The shaft comes in RAL 9003 white sandwich panels with anodised aluminium profiles, with glass panels, RAL-coloured aluminium profiles and an LED shaft ceiling available as options. Final travel, stops, door arrangement, clear openings, platform size and finishes are recorded in the project specification after survey.
What affects the cost of an APL Screw-Driven Platform Lift installation?
The cost of an APL Screw-Driven Platform Lift depends on travel, number of stops, platform size, doors, finishes and options, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Screw-Driven Platform Lift?
All Alliance lifts are backed by a manufacturer’s warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
