The challenge
A primary school in Ilford needed accessible access across its three floors.
The lift had to go inside the existing building with minimal disruption, and its use needed to be controlled so pupils could not call it unsupervised.
Our solution: Elite Cabin Lift

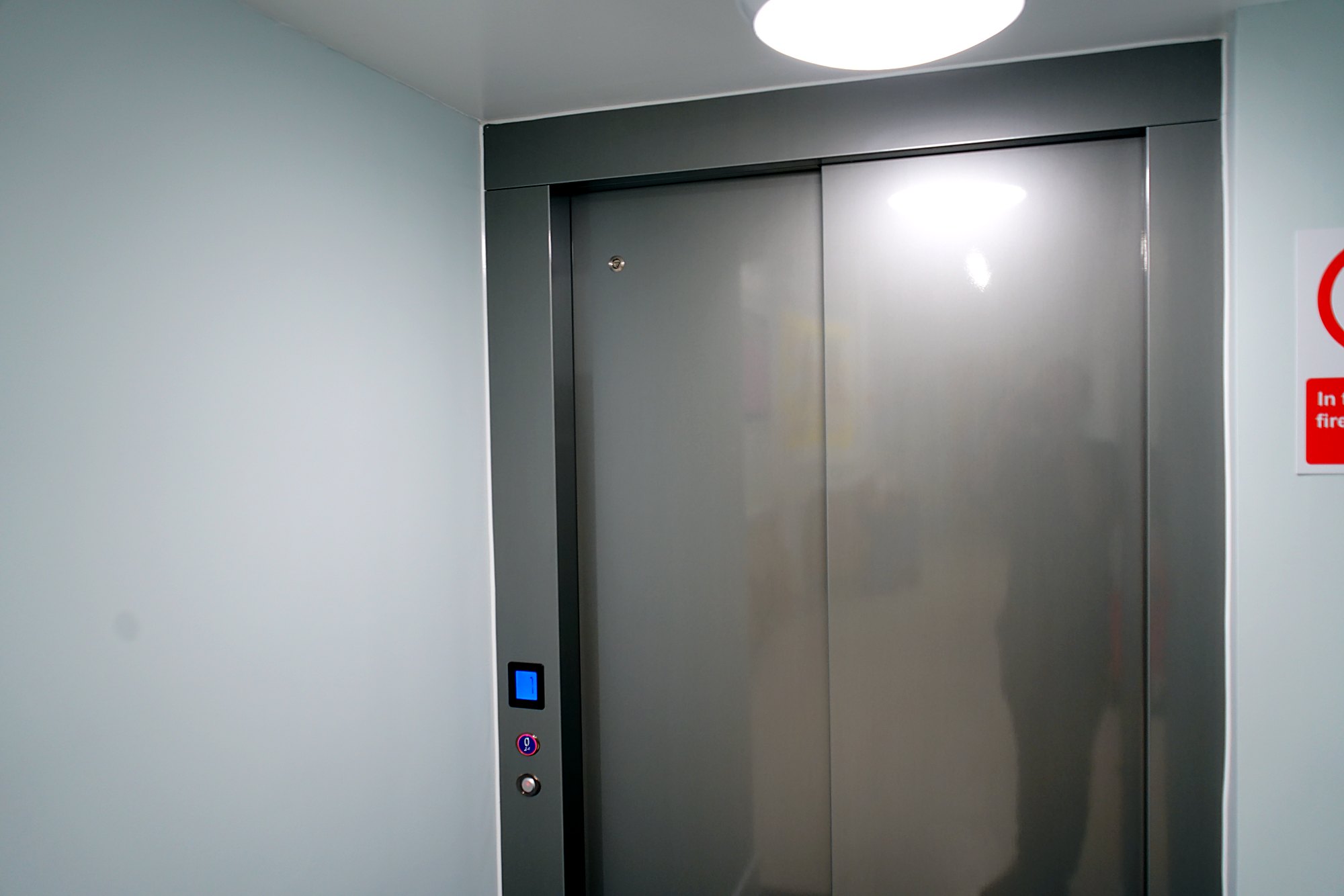

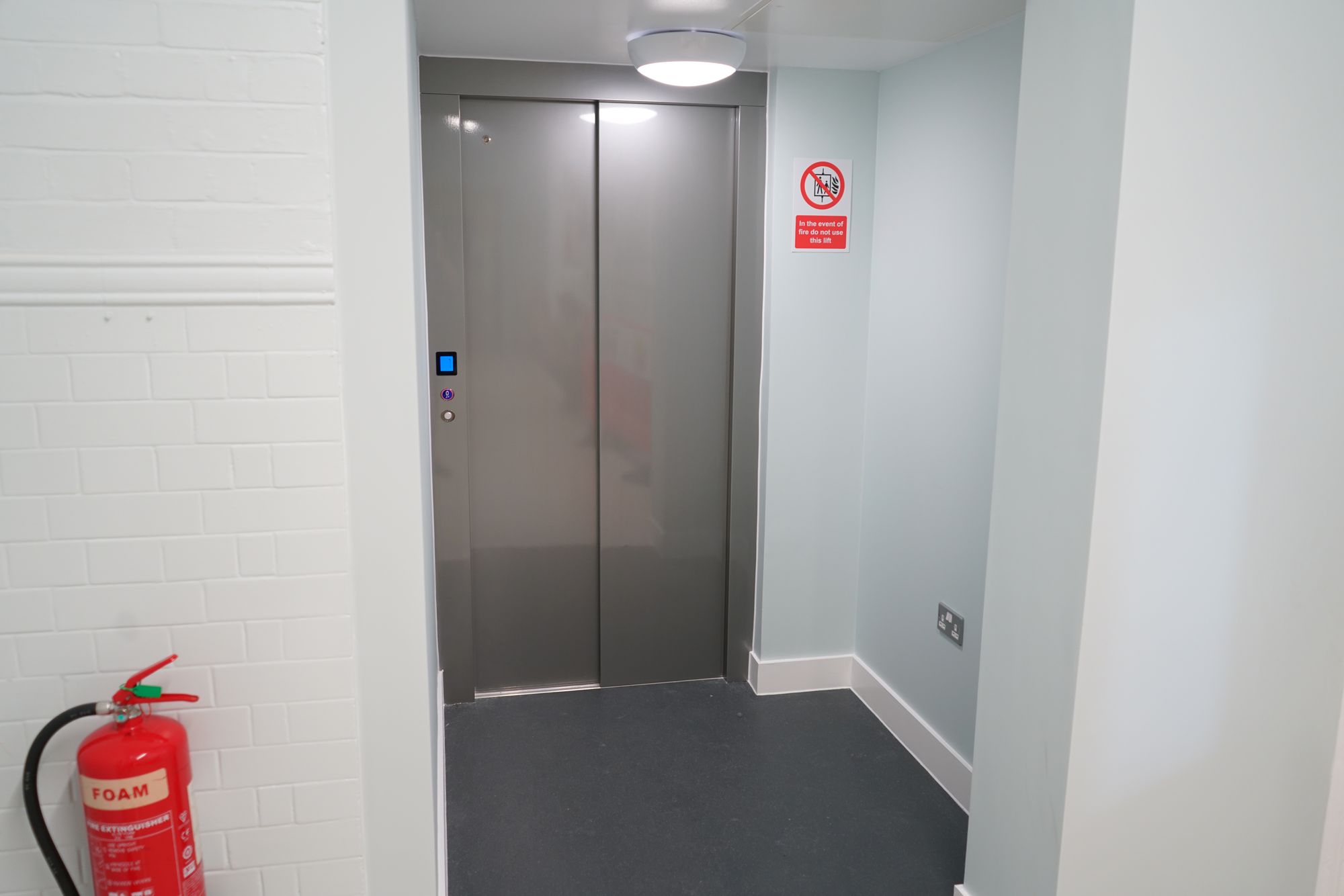

We installed an APL Elite Cabin Lift in a self-supporting steel structure inside the building, needing only a 150mm pit, travelling 9,173mm over three floors. It has fire-rated automatic sliding doors, grey skinplate finishes and a concrete-effect floor.

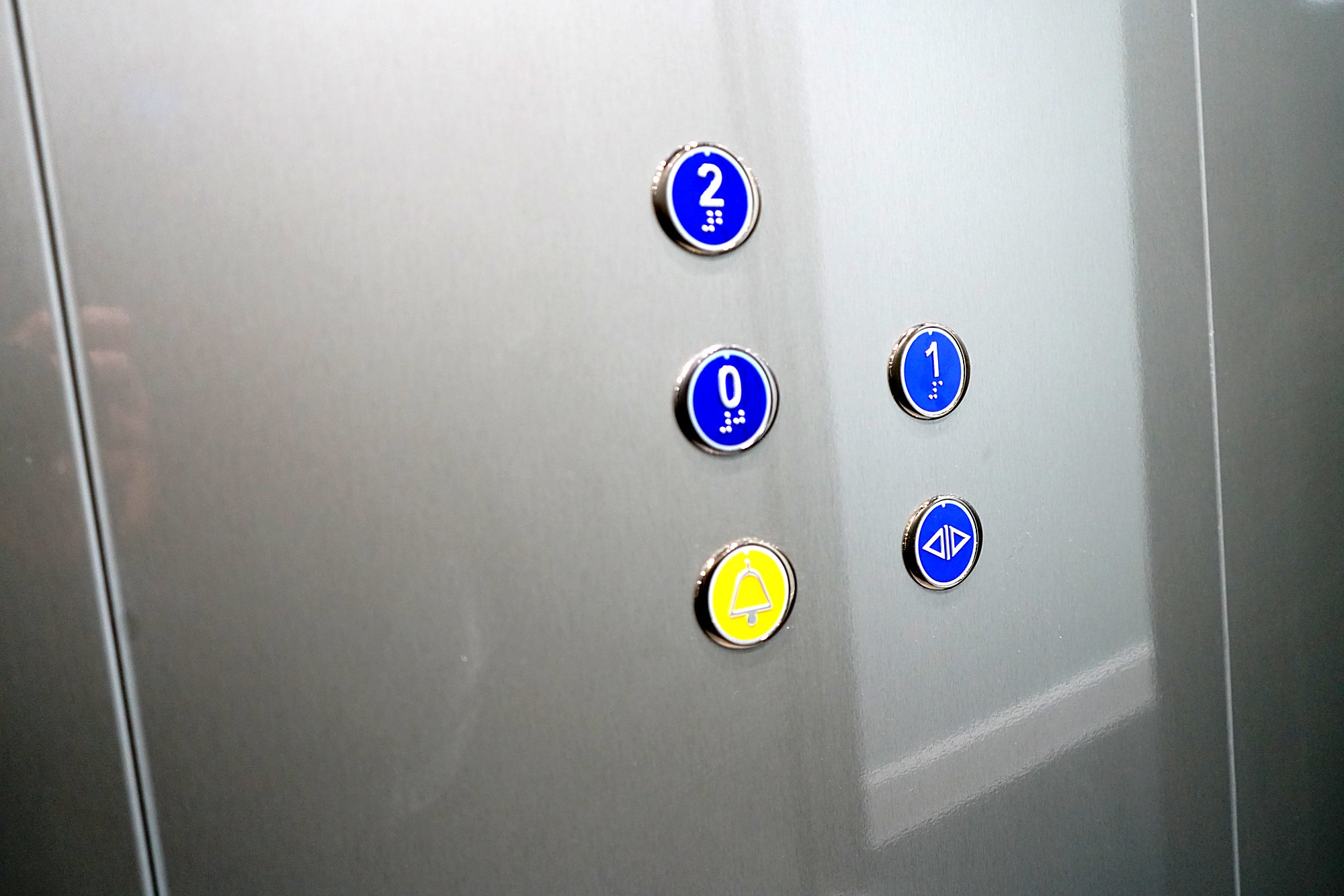

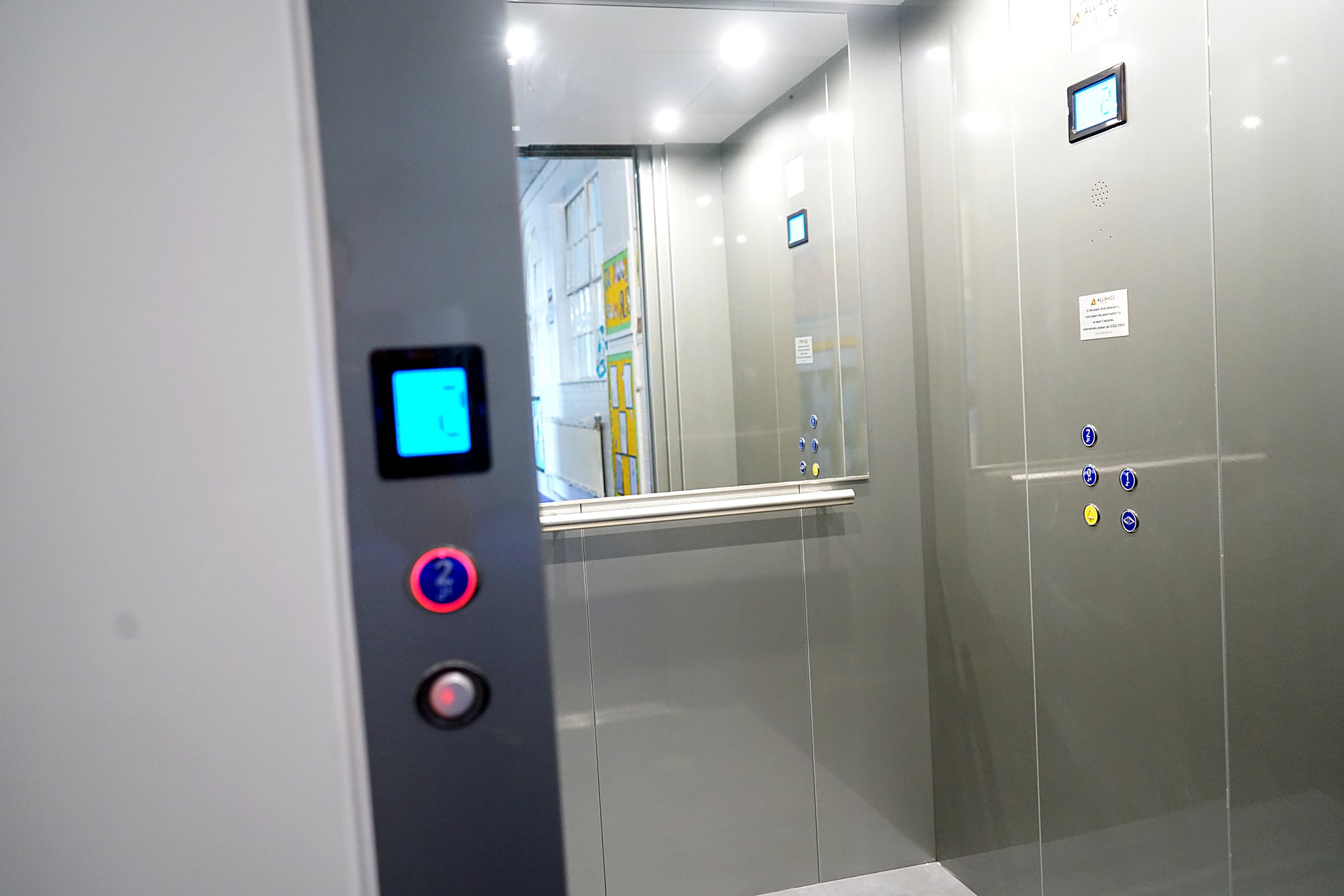

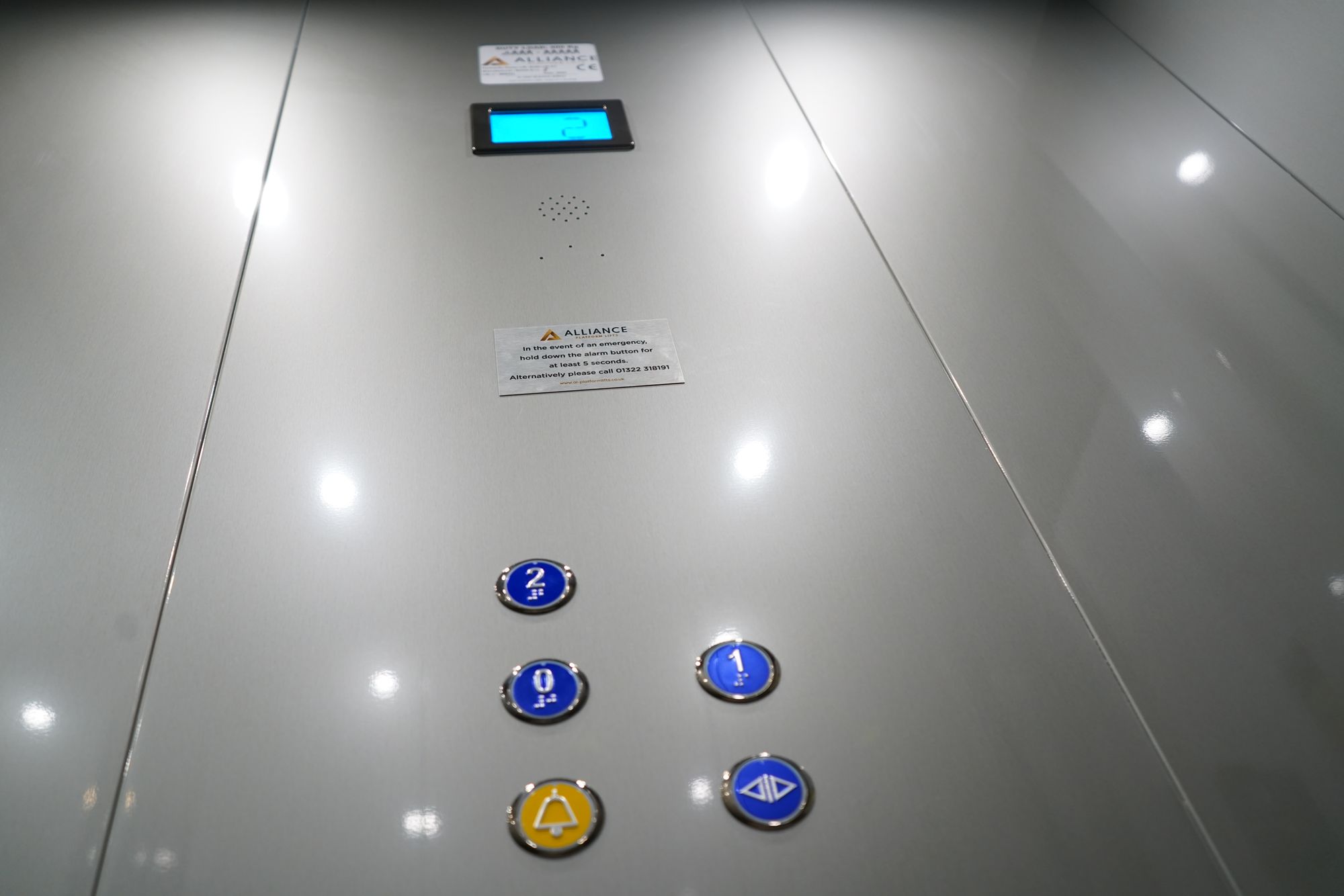

Key-fob controls at the landings restrict use, and voice announcement, LCD displays and a GSM autodialler with remote monitoring are fitted.
Lift details
- Lift
- Elite Cabin Lift
- Capacity
- 400kg (5 persons)
- Floors served
- 3 floors
- Travel
- 9,173mm
- Pit
- 150mm
- Doors
- Fire-rated automatic telescopic, 900 x 2,000mm
- Location
- London
- Sector
- Education
- Completed
- 2024
See more lifts for schools and universities, or explore the Elite Cabin Lift.
Discuss your projectElite Cabin Lift at Primary school, east London
APL Elite Cabin Lift
A space-efficient passenger lift designed for residential, commercial and public buildings, with flexible finishes and internal or external installation options.
