APL Elite Cabin Lift
A bespoke, space-efficient passenger lift designed for residential, commercial and public buildings, with flexible finishes and internal or external installation options.
What you're getting
Every APL Elite is built to order — these are the standard ranges; a site survey will confirm exact figures for your building.
CapacityUp to 500kg300kg or 400kg as standard, 500kg on request
Max travel18,000mmUp to 20m with the gearless drive
Speed0.15m/sSoft start and stop as standard
Entry optionsSwing, folding or sliding doorsSingle, adjacent or opposite entrances
SizeReduced pit & headroom120mm pit, cars from 500 x 550mm
FinishBespoke options availableModern and contemporary finishes
OperationSingle press operationSimple, intuitive controls
LocationInternal or external applicationsMasonry shaft or steel structureAPL Touch
Touch screen control and a smart handrail
The APL Touch series puts a multifunction touch screen console at the heart of the cabin. Select your floor, change the RGBW car lighting, backgrounds and floor icons, and check the lift’s operating status, all from one intuitive display.
Automatic installations include an elegant vertical handrail for a secure grip. On hold-to-run installations, a smart horizontal handrail with an integrated sensing system moves the lift while your hand stays in contact with it.
- Touch screen display
- Smart sensing handrail
- RGBW LED lighting
- Touch-to-call landing buttons
A finish to suit every space
From glazed and mirrored panels to custom colours and lighting, every APL Elite is finished to match the property it’s installed in.
APL Elite specification
Standard ranges for the APL Elite. Every lift is configured to your building, and our team will confirm the right specification for your project.
| APLElite Cabin Lift | |
|---|---|
| Duty load | 300kg or 400kg as standard, 500kg on request |
| Cabin sizes | From 500 x 550mm up to 1,200 x 1,200mm or 1,100 x 1,400mm |
| Maximum travel | 18m (hydraulic) or 20m (gearless) |
| Stops | Up to 8 (more on request) |
| Speed | 0.15m/s |
| Drive | Hydraulic, or gearless electric with VVVF control and no machine room |
| Minimum pit | 120mm (hydraulic) or 200mm (gearless) |
| Minimum headroom | 2,350 to 2,600mm (hydraulic) or from 2,500mm (gearless), depending on door type |
| Door and cabin height | 2,000mm as standard, other heights on request |
| Power supply | 230V single phase (400V three phase option on hydraulic) |
| Entrances | Single, adjacent (90°) or opposite (180°) |
| Doors | Swing doors (semi-automatic), or automatic folding or sliding doors |
| Emergency operation | Battery return to the main floor in a power cut, emergency light and alarm |
| Installation | Internal or external, in a masonry shaft or metal structure |
Case studies
The APL Elite in action

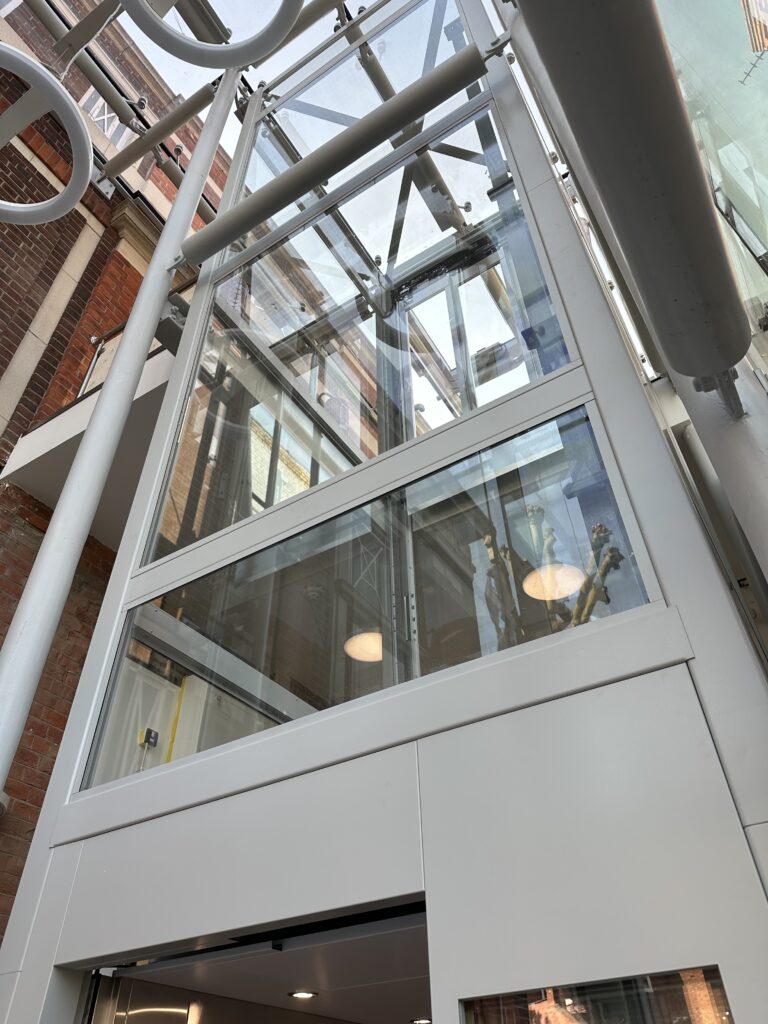

The library wanted a reliable, discreet lift that would blend into its traditional interior, set within a new glass atrium that lets in natural light and gives visitors a scenic ride.
Elegant, space-efficient cabin lifts for your home or business
The APL Elite brings the comfort of a passenger lift to buildings where space is tight, from period homes to offices and public buildings.
Quality
Our customers have always acknowledged our great attention to detail in every phase of the production process, which is embodied by a final product of the highest quality.
Customised projects
Alliance APL Elite Cabin Lifts adapt to any kind of location: new or existing buildings, indoor or outdoor, public or private spaces.
Energy efficiency
Energy-efficient cabin lifts with low power consumption, only requiring a 230V single phase power supply.
Safety and comfort
Our products ensure a safe and comfortable ride for all users with a soft stop/start feature as standard.
Design
Classy and elegant cabin lifts with a range of modern and contemporary finishes.

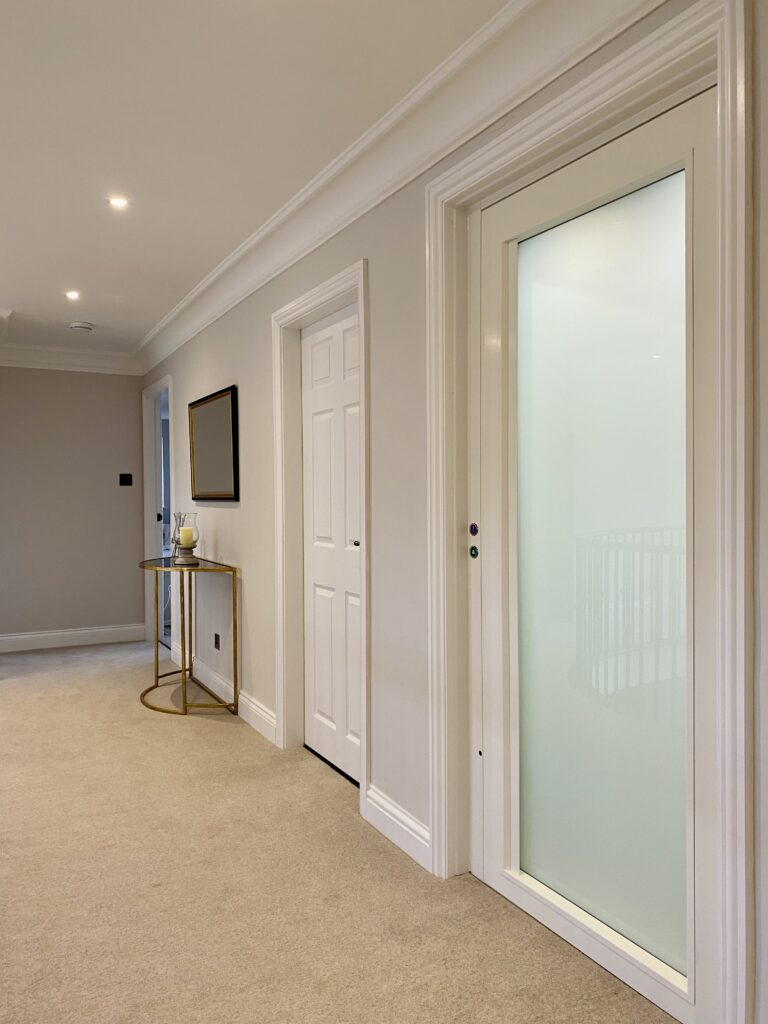

A landing door finished to match the hallway opens onto a car fitted out with its own interior and lighting.A lift car fitted out to your design
The APL Elite’s car can be fitted out to your own design, from the walls and flooring to the ceiling and lighting. We match the interior to the rooms around it, so the lift feels part of your home or building rather than an add-on.
We have used Alliance Platform Lifts on various projects over the last 3-4 years and we find them to be professional, punctual and very forward thinking. No problem is too great and the communication at both tender and post installation stage is second to none. We will continue to use APL’s services on any future platform or cabin lift projects we have.Daniel Griffin · Google review
I am so pleased with the service from everyone at alliance platform lifts, they have been so professional and helpful throughout the whole process, would highly recommend!Max Ball · Google review
outstanding service, very pleased with the product and the process from quoting to after sales care. Highly recommended!Kenton Mitchell · Google review
Polite, quick, good service. Quick installation. Helpful staff.Jerry Peters · Google review
Outstanding service from Alliance would 100% recommendAG Detail · Google review
10/10 experience. Highly recommend!Josh · Google review
See the APL Elite in our showroom
We have an APL Elite Cabin Lift installed in our showroom. Come and ride in the lift, try the controls and see the finishes up close before you decide.
ShowroomUnit 8, The Old Joinery, Maldon Road, Colchester CO2 0LT
Space-saving cabin lifts
A cabin lift gives you the comfort of a passenger lift with a far smaller footprint, a low pit and reduced headroom, so it fits where a conventional lift will not.
Designed around your building
Our cabin lifts are sized to the space you have. The APL Elite Cabin Lift starts from just 500 x 550mm for tight refurbishments, while the APL Heavy-Duty Cabin Lift goes up to 1,700 x 2,500mm for larger loads, both with low pit and headroom requirements.
- From 500 x 550mm
- Up to 1,700 x 2,500mm
- Low pit and headroom
- Glazed or solid shaft options
Installed in around a week
Where needed, the lift is supplied with its own supporting structure, so there is no traditional lift shaft to build. We coordinate the building and electrical works around it, and most installations are completed in around a week, depending on site conditions.
- Own supporting structure
- No traditional shaft needed
- Minimal disruption
- UK-based installation teams
Benefits of our cabin lifts
A fully enclosed cabin with automatic sliding doors and single-press controls makes every journey feel like a passenger lift, for homes and light commercial buildings alike.
- Passenger-style enclosed cabin
- Automatic sliding doors
- Single-press controls
- Space-efficient footprint
- Suits homes and light commercial
- High-quality modern finishes

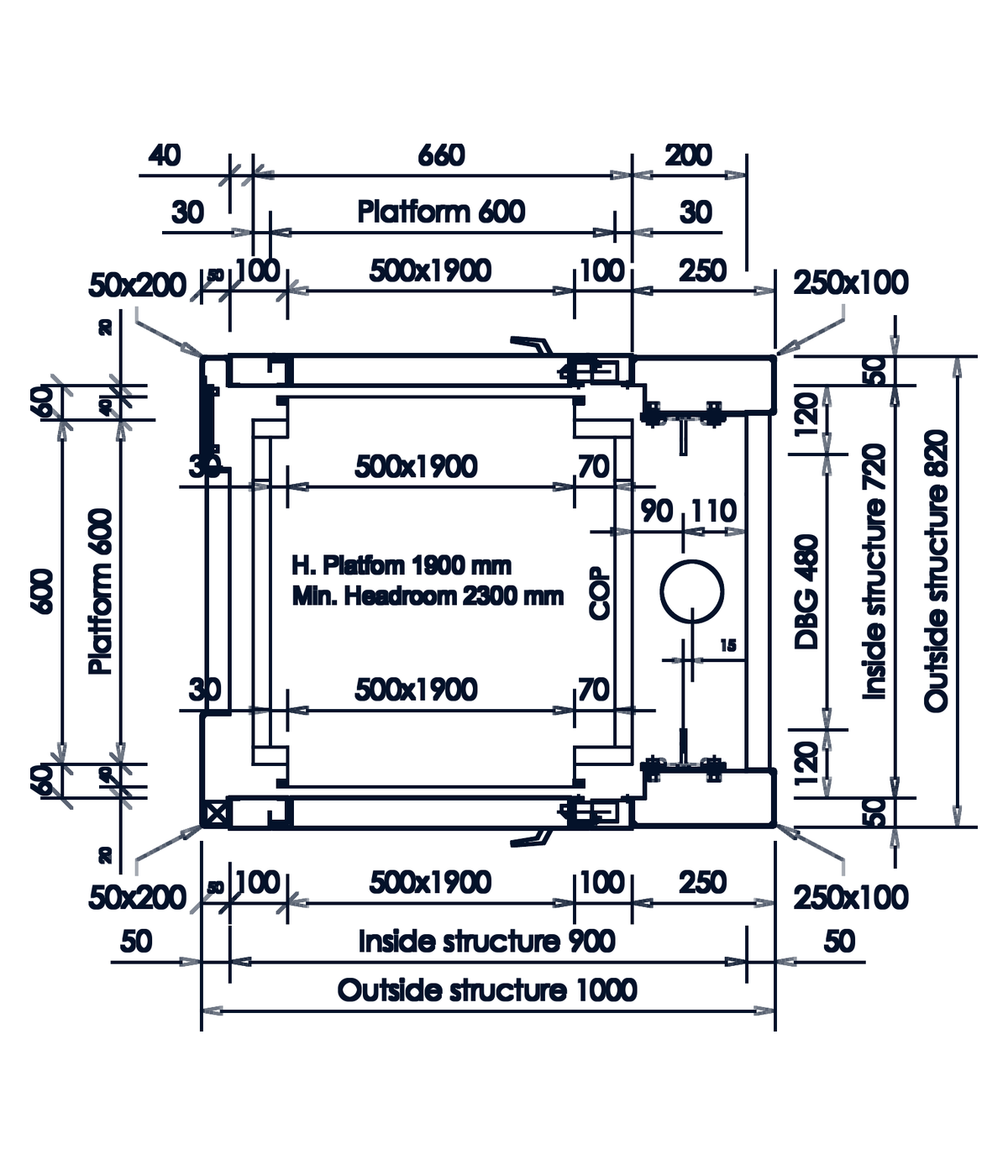

Plan drawing, compact APL Elite Cabin Lift.

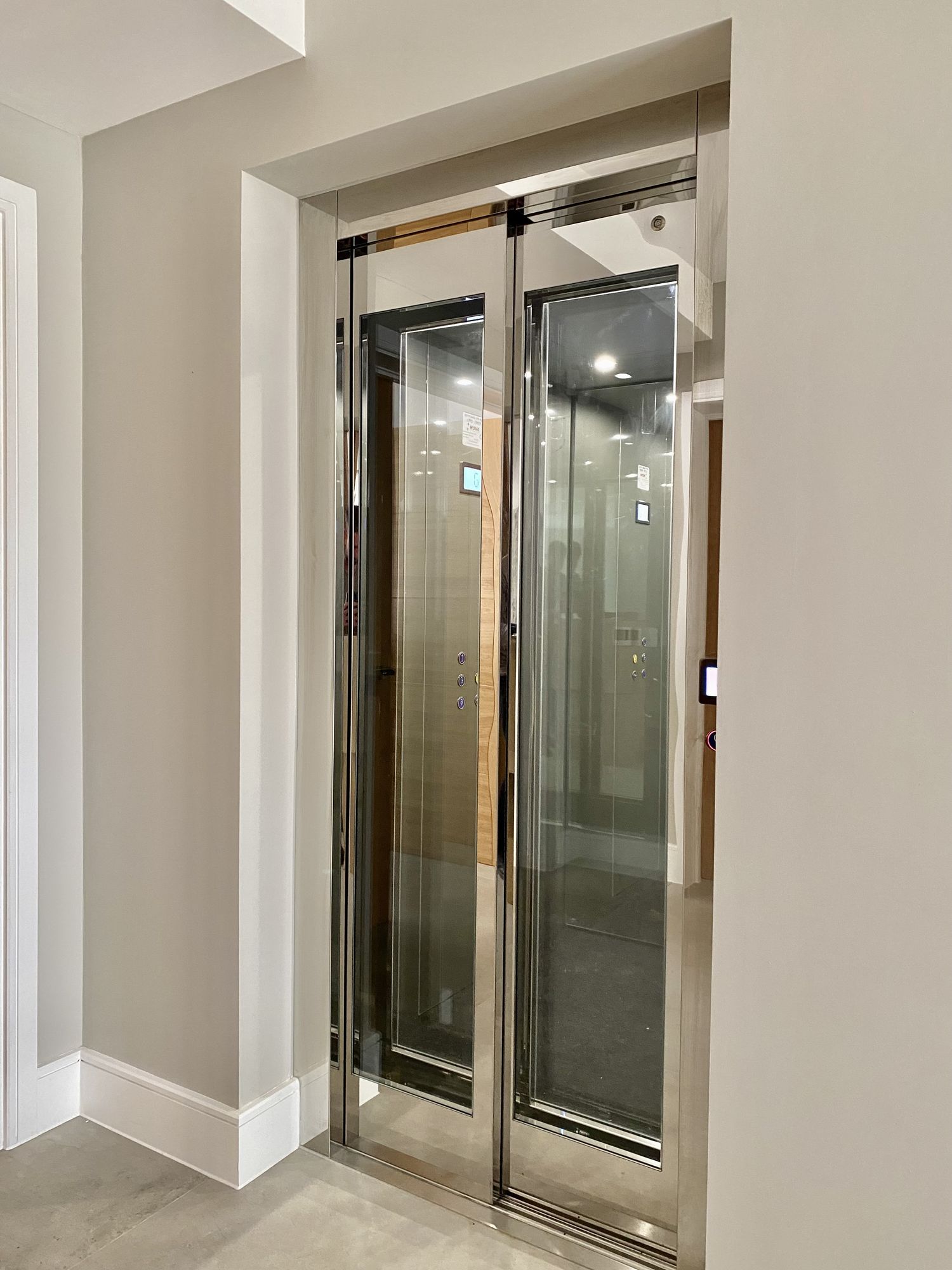

APL Elite Cabin Lift with glazed sliding doors.The regulations that apply to a cabin lift depend on your building, how it is used and the model you choose. Our APL Elite and APL Heavy-Duty cabin lifts are CE marked to the Machinery Directive 2006/42/EC, which applies in Great Britain through the Supply of Machinery (Safety) Regulations 2008. Depending on your project, requirements can also include Part M of the Building Regulations and the Equality Act 2010.
If you need help with the regulations for your project, ask one of our experts. We will explain what applies and recommend the right lift for your building.
ISO 9001, 14001 and 45001 accredited, SafeContractor approved, LEIA members and Constructionline Gold.
How it happens
Support every step of the way
From the first site survey to long-term servicing, one team looks after your cabin lift at every stage.
Design & Planning
A specialist site survey, then design and specification matched to your building and how it will be used.
Installation
Our projects team checks every detail of the preparatory works, whether by your builders or ours, so installation runs smoothly.
Maintenance
Service and maintenance plans keep your lift running safely and reliably, backed by a 24/7 emergency call-out service.
APL Elite questions
Answers to the questions we are asked most often. Can’t find what you need? Call 01206 803 132.
What is the APL Elite Cabin Lift, and who is it best for?
The APL Elite Cabin Lift is a cabin lift intended for homes and commercial properties. With bespoke cabin sizes available to the nearest 10mm it suits a varying variety of applications and site conditions. The lift is available with single press operation and automatic sliding doors much like a conventional passenger lift. The right choice depends on the users, loads, route, available space and building constraints, so Alliance should confirm suitability through a site survey and written specification.
How much space and building work does the APL Elite Cabin Lift need?
The APL Elite Cabin Lift can be installed within a masonry shaft or provided with a steel structure. Exact platform/cabin dimensions, pit, headroom, structural support and openings are project-specific. A survey should verify measured space, fixing points, access for installation and any builder or electrical works before the design is signed off.
What can the APL Elite Cabin Lift carry, and what is its load capacity?
The capacity is up to 500kg. If a greater capacity is required, our APL Heavy-Duty Cabin Lift is available with up to 1,500kg.
What happens to the APL Elite Cabin Lift during a power cut or fault?
The APL Elite Cabin Lift uses 230V single-phase and includes automatic emergency battery lowering and alarm/communication. In the event of a power failure the lift will automatically proceed to the lowest floor and open its doors. The full procedure will be demonstrated upon handover.
Can the APL Elite Cabin Lift support Part M and Equality Act accessibility requirements?
Yes, the APL Elite Cabin Lift can be supplied as Part M compliant provided the correct specification is met and site conditions allow it. The project team should assess the Equality Act 2010, relevant Building Regulations guidance, applicable lift standard, fire strategy, circulation space and user needs.
Can the APL Elite Cabin Lift use sliding doors and single-press controls?
Yes. The published APL Elite Cabin Lift specification offers sliding doors and single-press operation. If space constraints do not allow for sliding doors we have an intuitive touch sensitive handrail available for residential installations to make a constant pressure functionality much more user friendly.
What travel, entry and finish options are available for the APL Elite Cabin Lift?
The APL Elite Cabin Lift offers up to 18m of travel, swing or sliding doors, single-press operation, hydraulic or traction drive, and internal or external installation. Finishes include laminate, skinplate, painted and stainless steel walls as standard with bespoke options available as well as glazed shafts and a range of floor finishes. Final travel, stops, door arrangement, clear openings, cabin size and finishes are recorded in the project specification after survey.
What affects the cost of an APL Elite Cabin Lift installation?
The cost of an APL Elite Cabin Lift depends on travel, number of stops, cabin size, whether a shaft or steel structure is needed, doors, finishes, and any builder or electrical works. A site survey allows Alliance to price the actual configuration and state exactly what is included.
What servicing, warranty and project documentation come with the APL Elite Cabin Lift?
The APL Elite Cabin Lift is backed by a 2-year manufacturer’s warranty (subject to our terms and conditions), with ongoing maintenance and 24/7 emergency call-out support available. The warranty term, service frequency and documents supplied at handover, such as drawings, manuals and declarations, are confirmed in writing for your project.
